Home > Molex Connector Wire Harness > Micro-Fit 3.0 Wire Harness

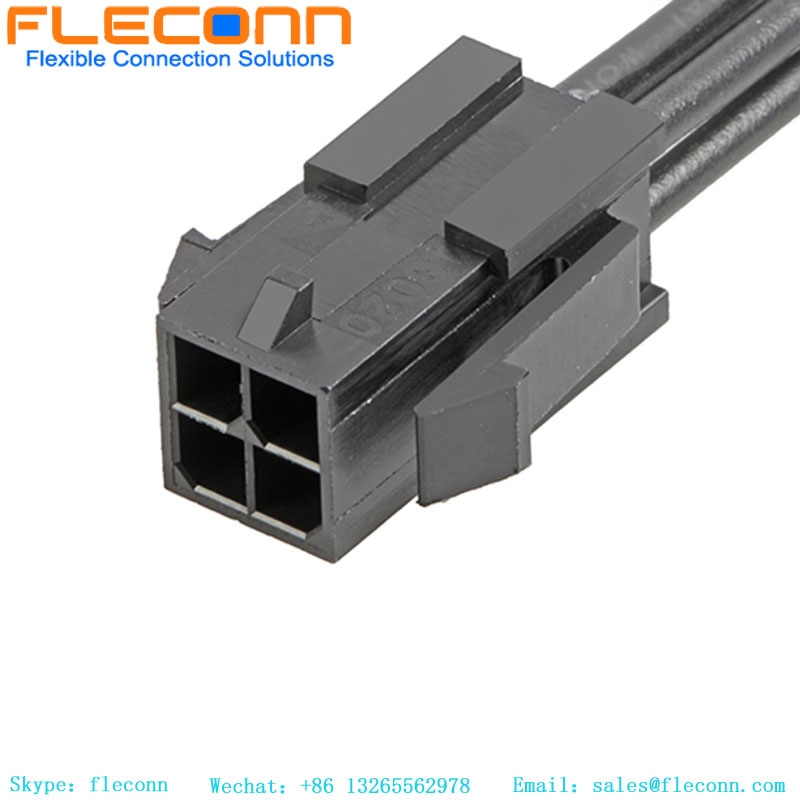

Molex 3.0MM Pitch 43020-0400 Cable Assembly
Molex 3.0MM Pitch 43020-0400 Cable Assembly Molex 3.0MM Pitch 43020-0400 Cable Assembly Molex 3.0MM Pitch 43020-0400 Cable Assembly Molex 3.0MM Pitch 43020-0400 Cable Assembly Molex 3.0MM Pitch 43020-0400 Cable Assembly

Molex 3.0MM Pitch 43020-0400 Cable Assembly

Item No.: MX-43020-04P-3.0PH-PVC-0.5M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch：3.0MM
Connector : Molex 43020-0400, 4/6/8/12/14 pin
Crimp Terminal: 43031-0021
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Request Quote
Description Review
Description

Molex 43020-0400 Cable Assembly Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex Micro-Fit 3.0 Pitch 43020-0400 Cable Assembly

Prouduct Name  Molex Mirco Fit 3.0 Pitch 43020-0400 Connector Cable
Equivalent to Molex Part No. 2147581041，2147581042
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43020-0400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430310004 26-30 AWG, 43031-0021 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex 3.0MM  Pitch 43020-0400 Cable Assembly

Molex 3.0MM Pitch 43040-0400 Cable Assembly

Molex Micro-Fit 43040-0600 Wire Harness

Molex Micro-Fit 43040-0800 Wire Harness

Molex 43040-1000 Connector Cable

Molex 43040-0200 Cable Assembly

Molex Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
