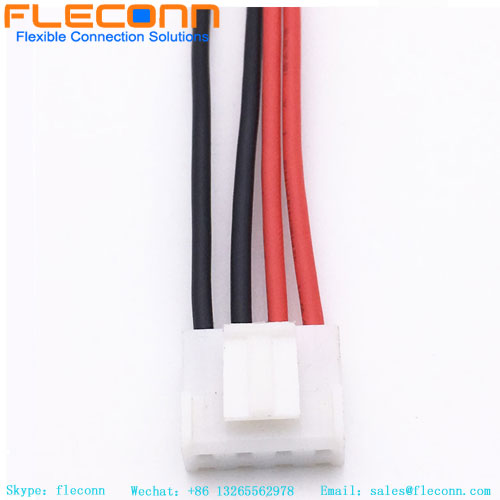

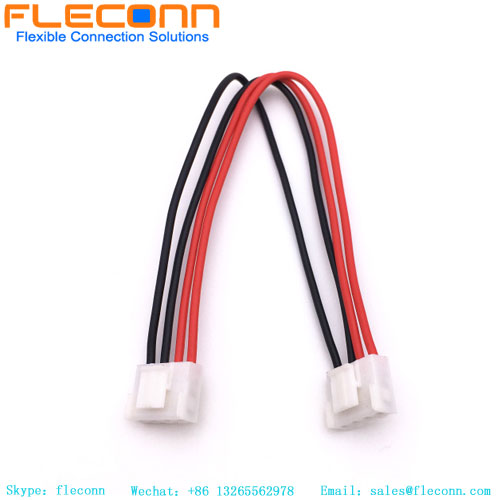

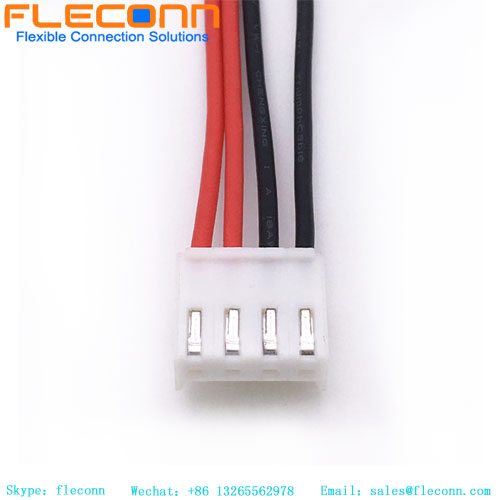

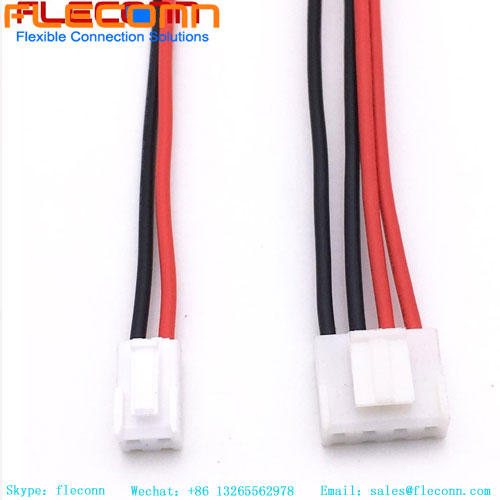

Ul 1007 1015 Jst Vhr 4 Pin Connector Wire Harness
FLECONN can custom 3.96mm pitch VHR-2N 4Pin / way / circuit JST VH series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
Ul 1007 1015 Jst Vhr 4 Pin Connector Wire Harness parameters
Product Name: Jst VH-3.96 |
Gender:Female |
Type:Connector Cable |
Rating voltage: 250V AC DC |
Cable Length and Color:Customized |
Wire/Cable Type:UL |
Assembly Configuration:Dual Ended Connectors |
Material Resin:Nylon |
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG |
Certificate: RoHS CE |
Operating temperature, fixed installation: -25° to +80°C |
Rating Current: 3.0A (22AWG) |
Insulation OD: 1.3mm - 1.9mm / 0.9mm - 1.9mm / 0.9mm - 1.3mm |
Material Metal:Brass |
Service: Wiring Harness OEM |
Insulation resistance: ≥100mΩ |
Ul 1007 1015 Jst Vhr 4 Pin Connector Wire Harness Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |

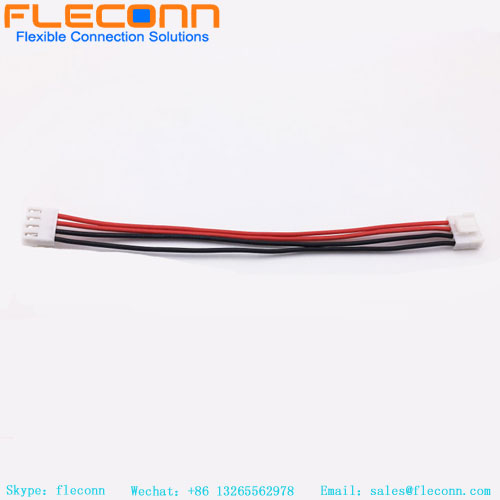

Ul 1007 1015 Jst Vhr 4 Pin Connector Wire Harness
