Molex Micro Fit 3.0 Cable 12 Position Overmolded Wire Harness Product Description
FLECONN can custom made overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.
Molex Micro Fit 3.0 Cable 12 Position Overmolded Wire Harness parameters
Cable: -40℃~105℃ PVC flexible
Process: Crimping, PVC overmould
Certificate: CE, RoHSProduct Specifications
Quality: 100% Inspection
Wire: Shielded Cable with PVC sleeve
Application: Home Appliance, Automobile, Motorcycle, Industry control
Important process: Crimping, Soldering,outside molding
Detail description for Molex Micro Fit 3.0 Cable 12 Position Overmolded Cable Assembly
Prouduct Name |
Molex Micro-Fit 3.0 Series 43025-1200 12Pin Connector Overmolded Cable Assemblies |
Equivalent to Molex Part No. |
43025-1200 |
Applications |
Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc. |
Technique characters |
1. Connector housing: 43025-1200 Micro-Fit 3.0 Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Low-Halogen, Black |
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG |
3. Connector type: rectangular |
4. Connector Feature: latch lock |
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation. |
6. Cable jacket: black PVC jacket |
7. Shielded: un-shielded / braided shielded |
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized |
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable |
10. Color: Black, white, blue, green etc. MOQ 3000m except black. |
11. Wiring diagrm: defined by customers |
12. Inner molding material: LDPE resin |
13. Outer molding material: 45P PVC resin |
Environment temperature: |
Ambient temperature for operation: -25…80℃ |
Waterproof Rating: |
IP4X |
Certificate: |
CE, RoHS, UL(connector, cable) |
Package: |
**pcs/bind or 1pcs/PE bag |

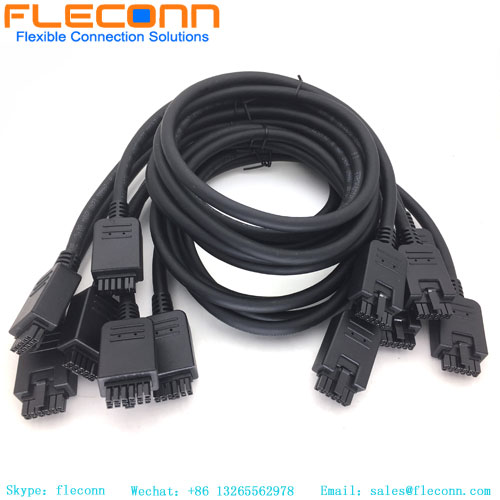

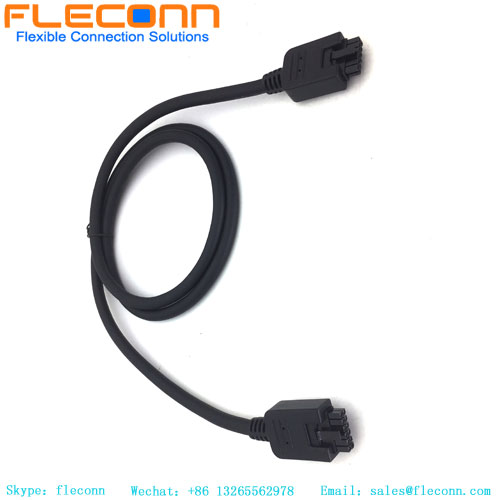

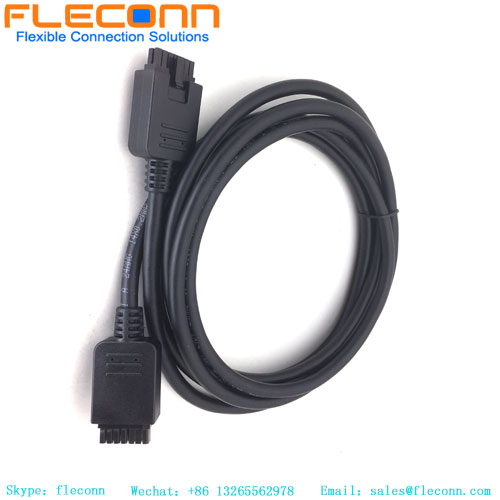

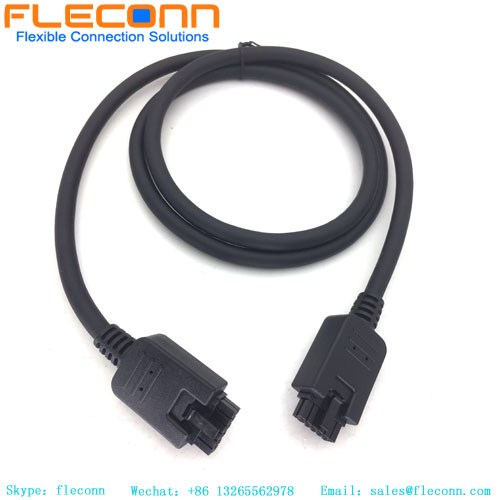

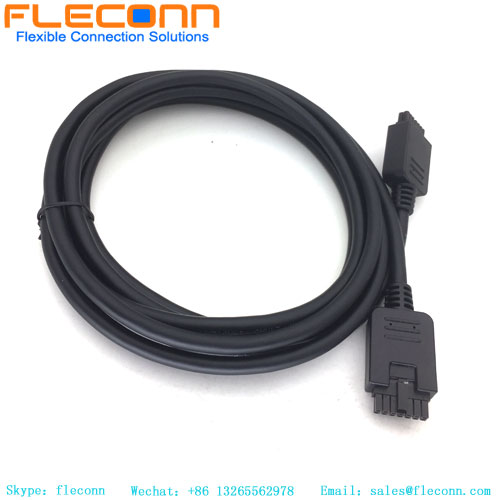

Molex Micro Fit 3.0 Cable 12 Position Overmolded Wire Harness
![Micro-fit 3.0 43025-1200 Overmolded Cable Assembly Micro-fit 3.0 43025-1200 Overmolded Cable Assembly](/u_file/2210/photo/4878dbcd0e.jpg)
![Molex Micro Fit 3.0 Cable 12 Position Overmolded Wire Harness Molex Micro Fit 3.0 Cable 12 Position Overmolded Wire Harness](/u_file/2210/photo/7896cd0643.jpg)
![Molex Micro Fit 3.0 Cable 43025 Series Overmolded Wire Harness Molex Micro Fit 3.0 Cable 43025 Series Overmolded Wire Harness](/u_file/2210/photo/1ab93492fe.jpg)
![Molex 43025-1200 Wire To Wire Connector Cable Molex 43025-1200 Wire To Wire Connector Cable](/u_file/2210/photo/d213ef88a4.jpg)
![Micro Fit 3.0 12 Pin Molded Cable Wire Harness Micro Fit 3.0 12 Pin Molded Cable Wire Harness](/u_file/2210/products/27/86824121aa.jpg)
