Molex Micro-Fit 3.0 245132 Series Wire to Board Cable Assembly Product Description
FLECONN can custom made overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.
Molex Micro-Fit 3.0 245132 Series Wire to Board Cable Assembly parameters
Cable: -40℃~105℃ PVC flexible
Process: Crimping, PVC overmould
Certificate: CE, RoHSProduct Specifications
Quality: 100% Inspection
Wire: Shielded Cable with PVC sleeve
Application: Home Appliance, Automobile, Motorcycle, Industry control
Important process: Crimping, Soldering,outside molding
Detail description for Micro-fit 3.0 2x2P 4 pin Overmolded Cable Assembly
Prouduct Name |
Molex Micro-Fit 3.0 Series 43025-0400 4Pin Connector Overmolded Cable Assemblies |
Equivalent to Molex Part No. |
2451320405, 2451320410, 2451320420, 2451320430, 2451320450 |
Applications |
Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc. |
Technique characters |
1. Connector housing: 43025-0400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black |
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG |
3. Connector type: rectangular |
4. Connector Feature: latch lock |
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation. |
6. Cable jacket: black PVC jacket |
7. Shielded: un-shielded / braided shielded |
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized |
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable |
10. Color: Black, white, blue, green etc. MOQ 3000m except black. |
11. Wiring diagrm: defined by customers |
12. Inner molding material: LDPE resin |
13. Outer molding material: 45P PVC resin |
Environment temperature: |
Ambient temperature for operation: -25…80℃ |
Waterproof Rating: |
IP4X |
Certificate: |
CE, RoHS, UL(connector, cable) |
Package: |
**pcs/bind or 1pcs/PE bag |
Molex Micro-Fit 3.0 245132 Series Wire to Board Cable Assembly

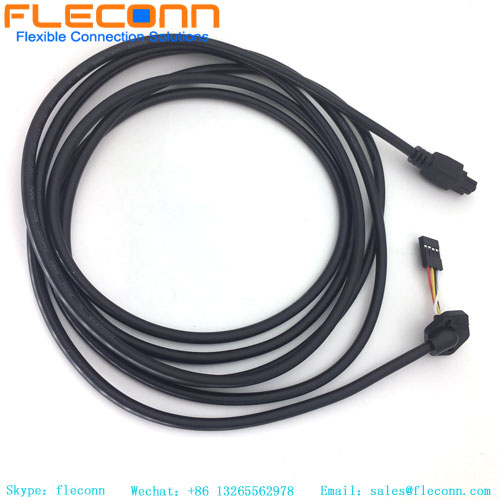

![Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly](/u_file/2210/97fa0947d0.jpg)

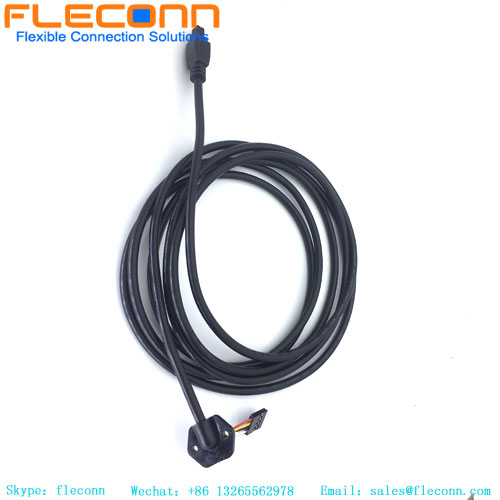

![Molex Microfit 3.0 Cable, 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable, 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness](/u_file/2210/a130cd2f63.jpg)

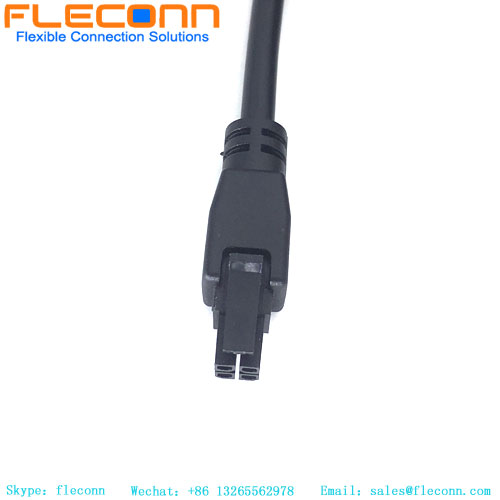

![Overmolded 43025-0400 2x2P 4 Pin Molex Wire to Board Connector Cable Wire Harness Overmolded 43025-0400 2x2P 4 Pin Molex Wire to Board Connector Cable Wire Harness](/u_file/2210/49ad214959.jpg)

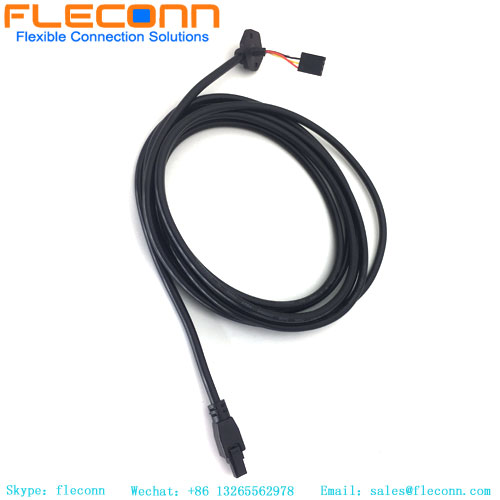

![Molex Microfit 3.0 Cable, 2451320405 4 Pin Overmolded Connector Cable Harness 0.5M 1M 2M 3M 5M Molex Microfit 3.0 Cable, 2451320405 4 Pin Overmolded Connector Cable Harness 0.5M 1M 2M 3M 5M](/u_file/2210/38b7a1de57.jpg)

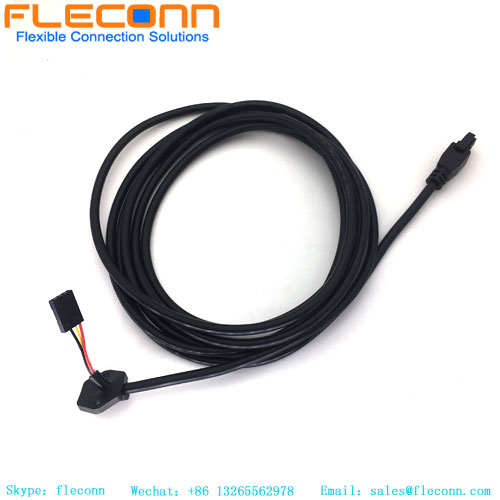

![Molex Micro fit 3.0 Cable, 2451320420 4Pin 3.0mm Pitch Wire to Board Connector Overmolded Cable Wire Harness Molex Micro fit 3.0 Cable, 2451320420 4Pin 3.0mm Pitch Wire to Board Connector Overmolded Cable Wire Harness](/u_file/2210/772e9be239.jpg)
