Molex 0039012140 4.2mm Pitch 14 Pin Wire Harness Manufacturer Description
FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 0039 series molex microfit 4.2 cable with micro-fit 4.2 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 4.2 Cable receptacle housing such as manufacturer part number 0039012100,0039012140,0039013103,0039013143 available.
Custom Molex 0039012140 PH 4.2mm Pitch Wiring Harness Assembly
Prouduct Name |
Molex Micro-Fit 4.2 Series 0039012140 10 Pin Connector Overmolded Cable Assemblies |
Equivalent to Molex Part No. |
0039012140 |
Applications |
Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc. |
Technique characters |
1. Connector housing: 0039012140 Micro-Fit 4.2 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen |
2. Crimp terminal: 39000038 Micro-Fit 1.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact |
3. Connector type: rectangular |
4. Connector Feature: latch lock |
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation. |
6. Cable jacket: black PVC jacket |
7. Shielded: un-shielded / braided shielded |
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized |
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable |
10. Wiring diagrm: defined by customers |
Environment temperature: |
Ambient temperature for operation: -25…80℃ |
Waterproof Rating: |
IP4X |
Certificate: |
CE, RoHS, UL(connector, cable) |
Package: |
**pcs/bind or 1pcs/PE bag |
Molex 0039012140 4.2mm Pitch 14 Pin Wire Harness Manufacturer

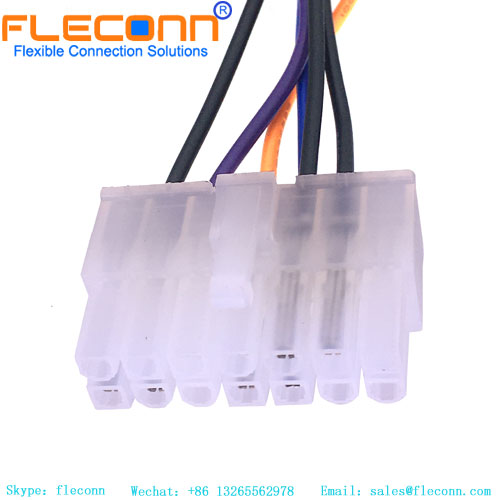

![4.2mm Pitch Molex 0039012140 10 Pin Connector Cable 4.2mm Pitch Molex 0039012140 10 Pin Connector Cable](/u_file/2310/products/19/53f10a8653.jpg)

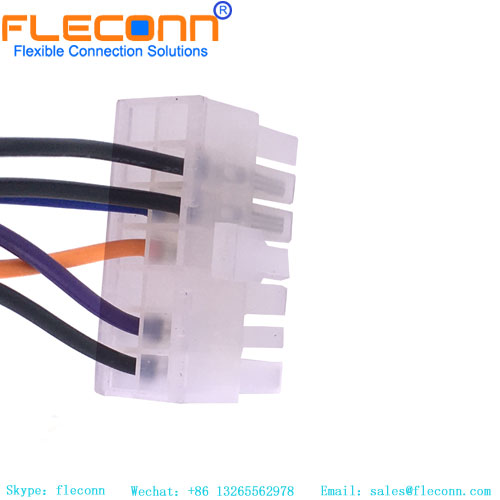

![Custom Molex 0039012140 PH 4.2mm Pitch Wiring Harness Assembly Custom Molex 0039012140 PH 4.2mm Pitch Wiring Harness Assembly](/u_file/2310/products/19/27f3513b0c.jpg)

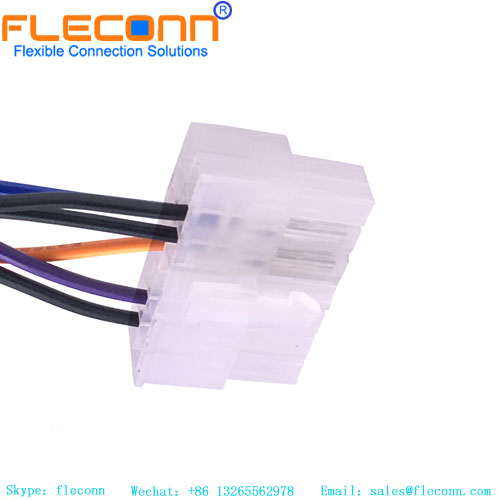

![Molex 0039012140 4.2mm Pitch 14 Pin Wire Harness Manufacturer Molex 0039012140 4.2mm Pitch 14 Pin Wire Harness Manufacturer](/u_file/2310/products/19/7c4890f64f.jpg)

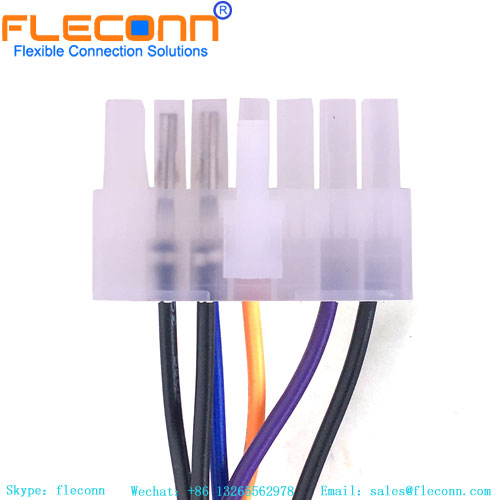

![Molex 0039012140 14 Pin Connector Wire Harness Molex 0039012140 14 Pin Connector Wire Harness](/u_file/2310/products/19/e9901355be.jpg)
