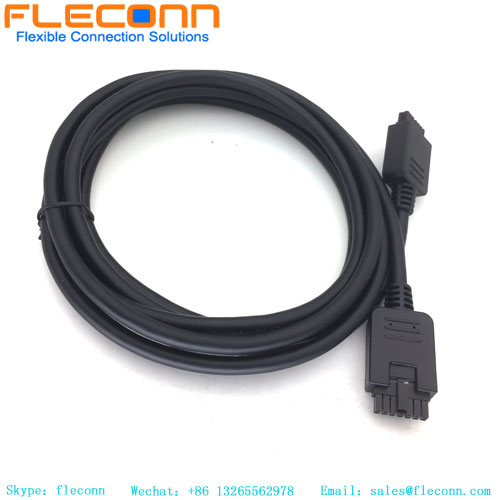

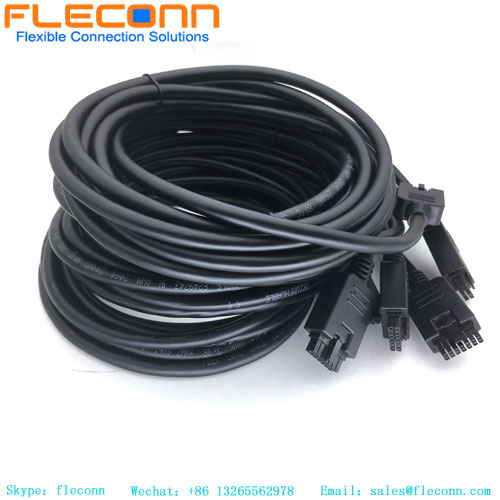

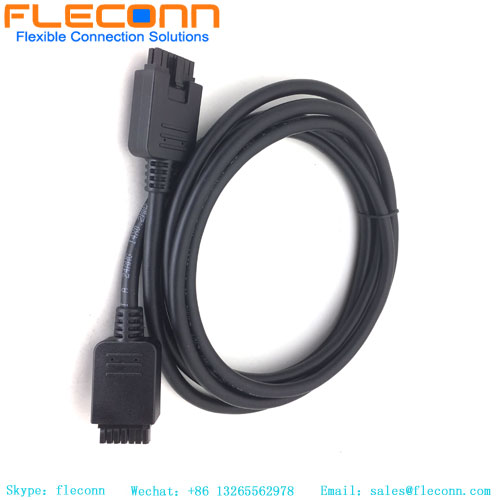

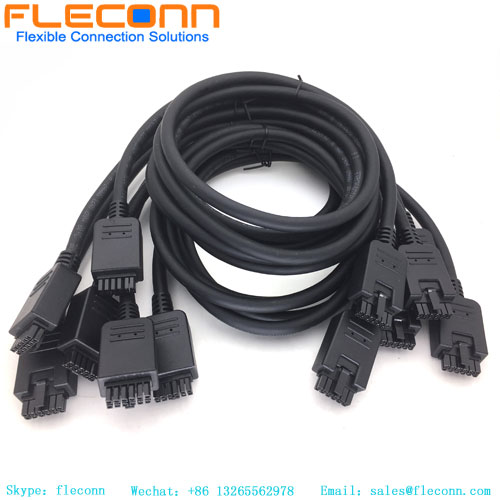

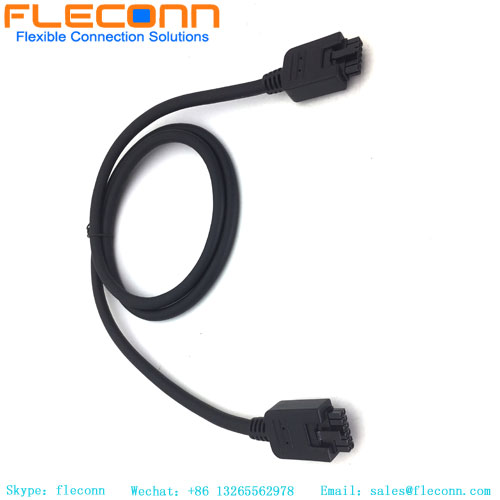

Micro Fit Molex 43025-1400 Overmould Cable

Item No.: MX-14P-3.0PH-PVC-1M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch:3.0MM
Connector : Molex 43025-1400, 4/5/6/8/12 pin
Crimp Terminal: 43030-0001
Wire: UL 2464 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Description
Description

Micro Fit Molex 43025-1400 Overmould Cable Product Description



FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Micro Fit Molex 43025-1400 Overmould Cable parameters

Cable: -40℃~105℃ PVC flexible
Process: Crimping, PVC overmould
Certificate: CE, RoHSProduct Specifications
Quality: 100% Inspection
Wire: Shielded Cable with PVC sleeve
Application: Home Appliance, Automobile, Motorcycle, Industry control
Important process: Crimping, Soldering,outside molding


Detail description for Micro-fit 3.0 2x7P 14 pin Overmolded Cable Assembly

Prouduct Name  Molex Micro-Fit 3.0 Series 43025-1400 4Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.  43025-1400
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43025-1400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 14 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
