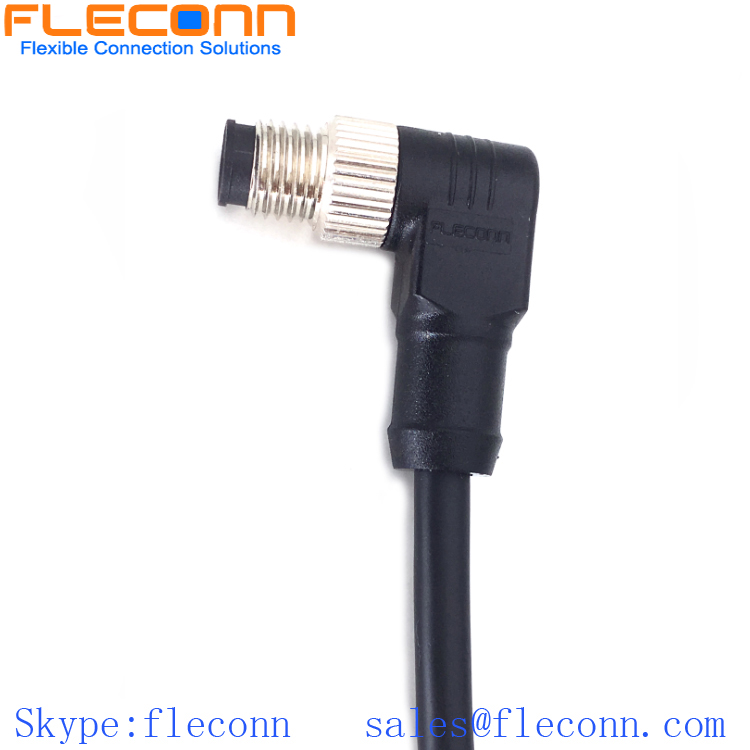

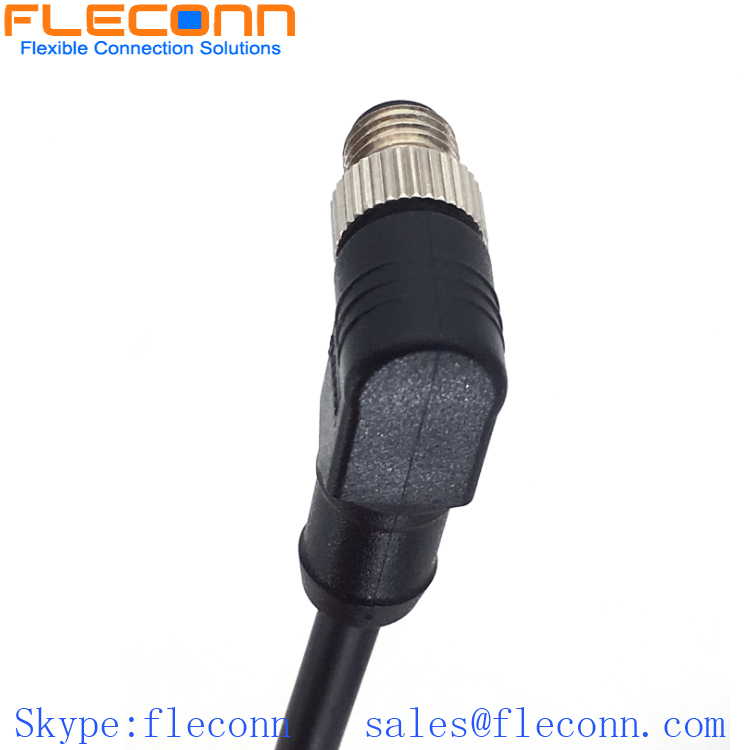

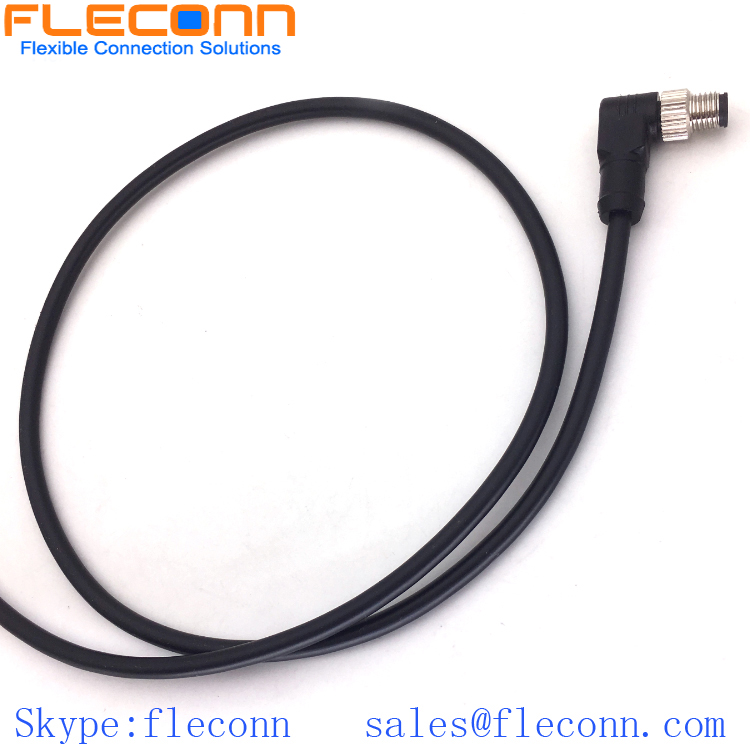

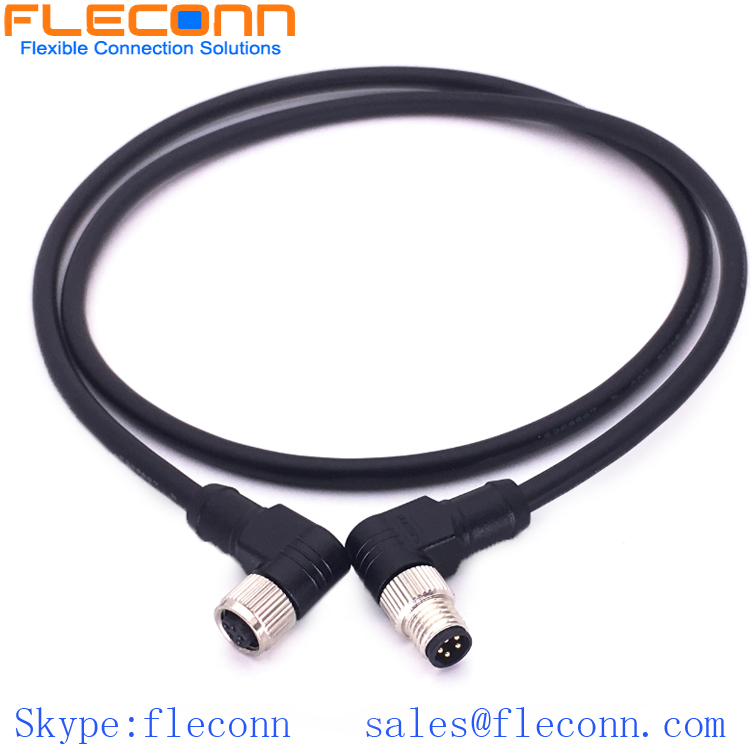

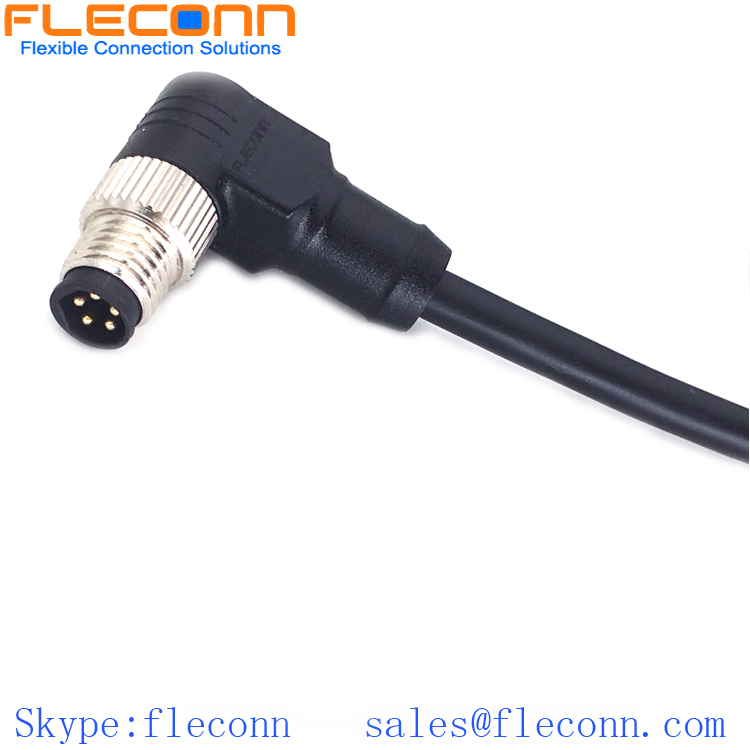

M8 B-coded 5 Pin Right Angle Male Cable Product Description
M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.
M8 B-coded 5 Pin Right Angle Male Cable product parameters
Product series: M8 Connector Cable |
Connector Gender: Male |
Industry standard: IEC 61076-2-104 |
Connector core number: 5P |
Plug Guide: Right Angle |
Terminal Material: Copper |
Waterproof grade: IP67 |
Wiring method: welding wire |
Wire gauge: 20-28AWG |
Connection method: threaded connection |

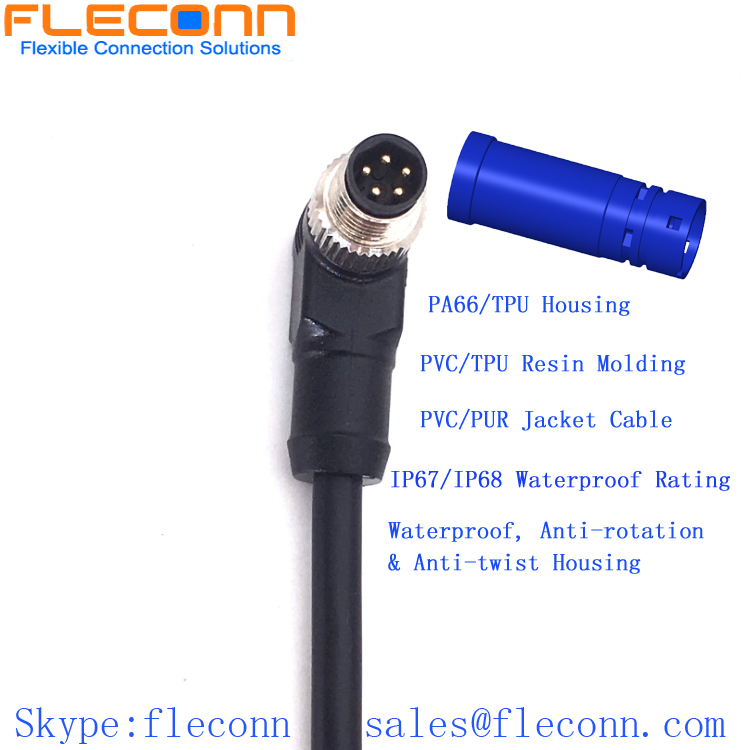

Connector rubber core: PA66 |
Injection material: TPU |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
Applicable temperature: -20°- +80°
|
Wire cover: PVC/PUR
|
M8 B-coded 5 Pin Right Angle Male Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M8 B-coded 5 Pin Right Angle Male Cable
