M8 B-Coded 4 Pin Male To Female Plug Cable, Ip67 Waterproof Connector Cable Product Description
M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.
M8 B-Coded 4 Pin Male To Female Plug Cable, Ip67 Waterproof Connector Cable product parameters
Product series: M8 Connector Cable |
Connector Gender: Female |
Industry standard: IEC 61076-2-104 |
Connector core number: 4P |
Plug Guide: Straight |
Terminal Material: phosphor copper |
Waterproof grade: IP67 |
Wiring method: soldering wire |
Wire gauge: 20-28AWG |
Connection method: threaded connection |
Connector Housing: PA66 |
Injection material: TPU |
Rated current: 4A |
Connector conductor: gold plated copper |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: sealed O-ring
|
Conductor resistance: ≤5mΩ |
Applicable temperature: -20°- +80°
|
Wire cover: PVC/PUR
|
M8 4 Pin 90 Degree Angle Overmoulded Female Connector Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M8 B-Coded 4 Pin Male To Female Plug Cable

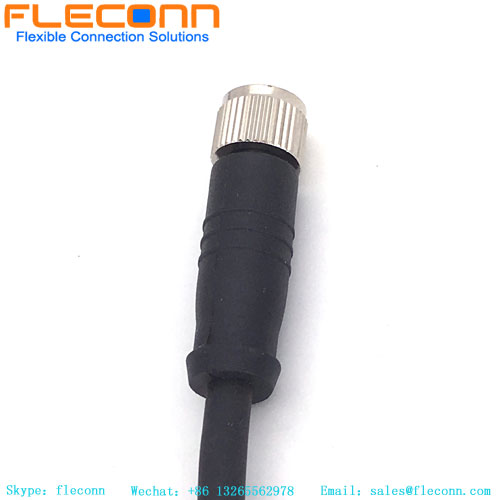

![M8 B-Coded 4 Pin Male To Female Plug Cable M8 B-Coded 4 Pin Male To Female Plug Cable](/u_file/2208/products/03/e8ea352d0b.jpg)

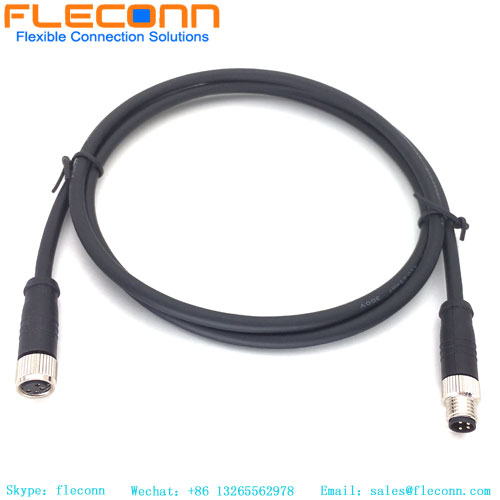

![M8 4-Position 90 Degree Angle Molded Female Connector Cable M8 4-Position 90 Degree Angle Molded Female Connector Cable](/u_file/2208/products/03/fbec0f8483.jpg)

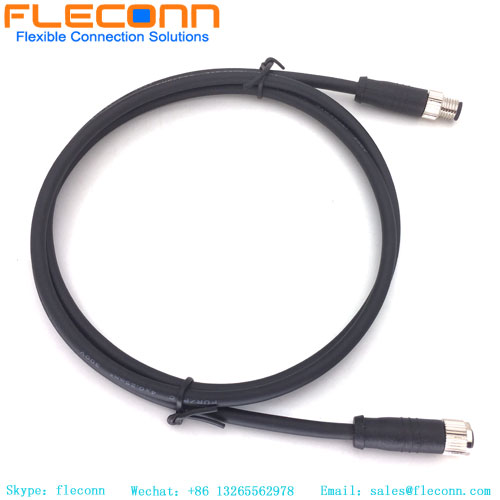

![M8 4-Pole Right Angle Female Cable,Circular Aviation Connector M8 4-Pole Right Angle Female Cable,Circular Aviation Connector](/u_file/2208/products/03/caf0e483b9.jpg)

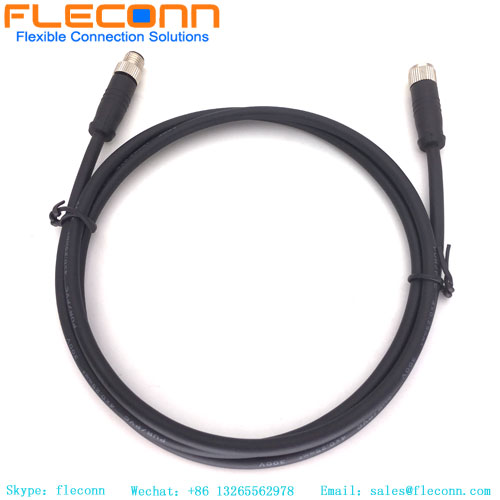

![M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset](/u_file/2208/products/03/527473eebf.jpg)

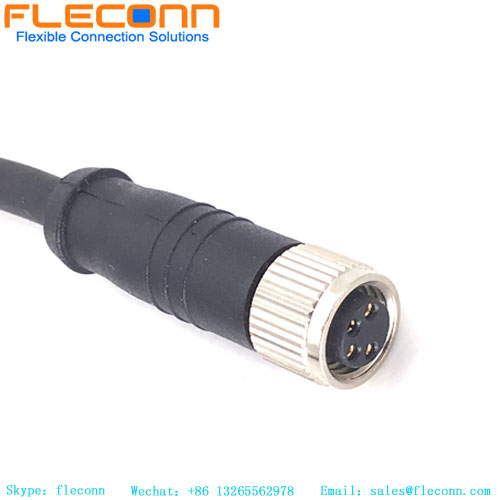

![M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset](/u_file/2208/products/03/3bdfd458e8.jpg)
![M8 Molded Cable FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.](/u_file/2208/photo/b274684705.jpg)
