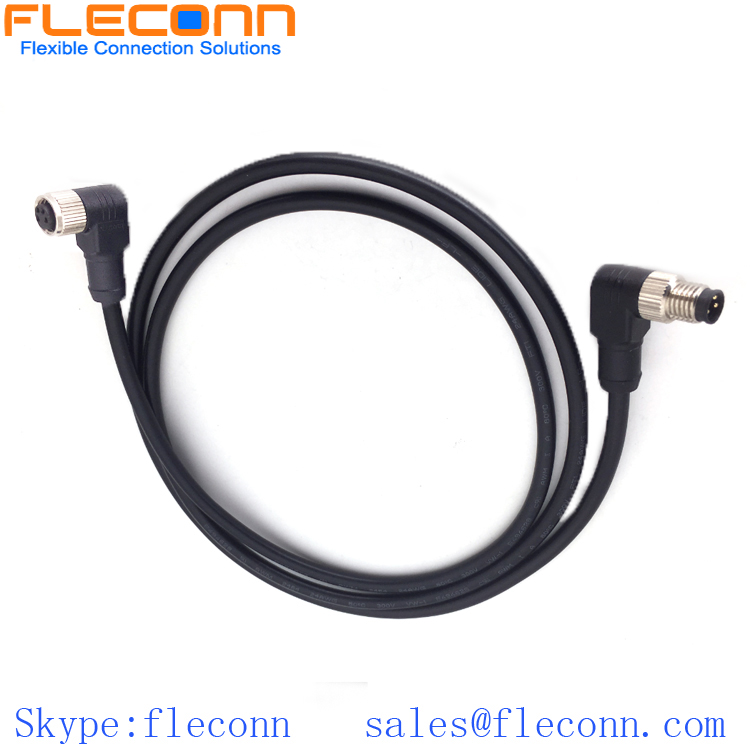

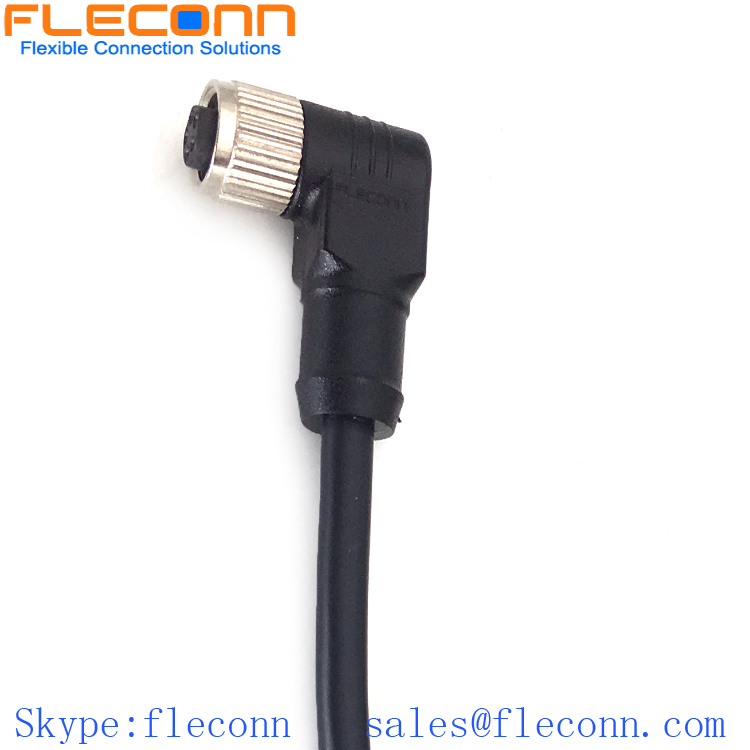

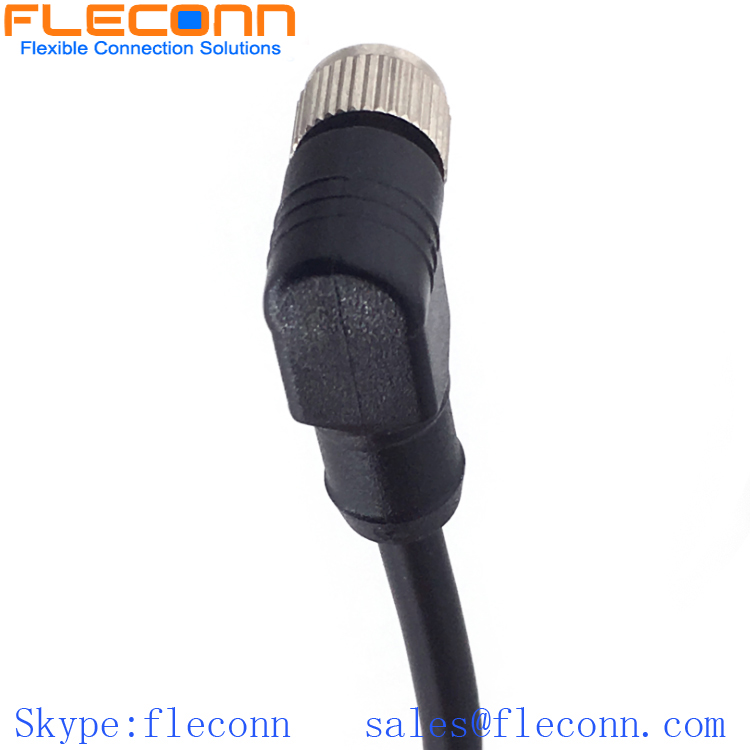

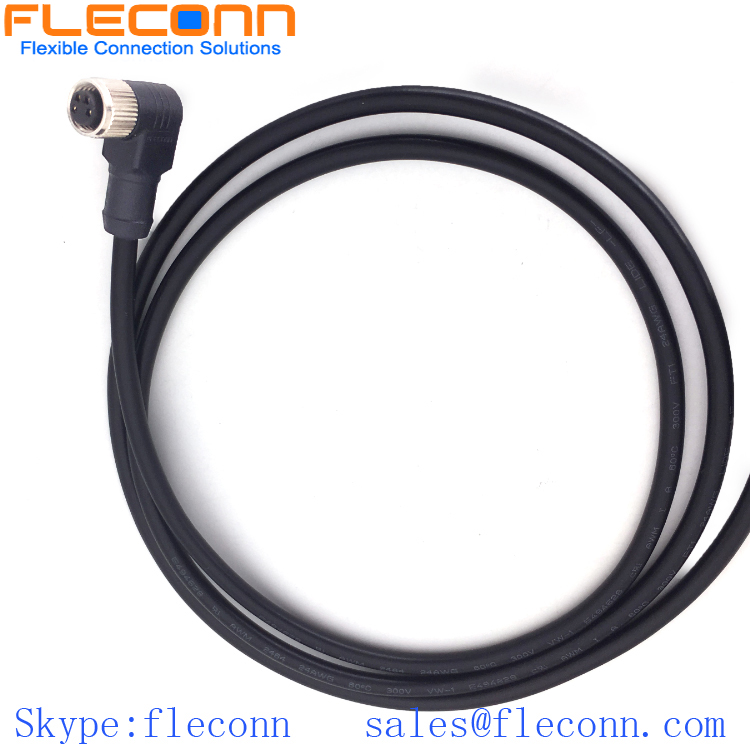

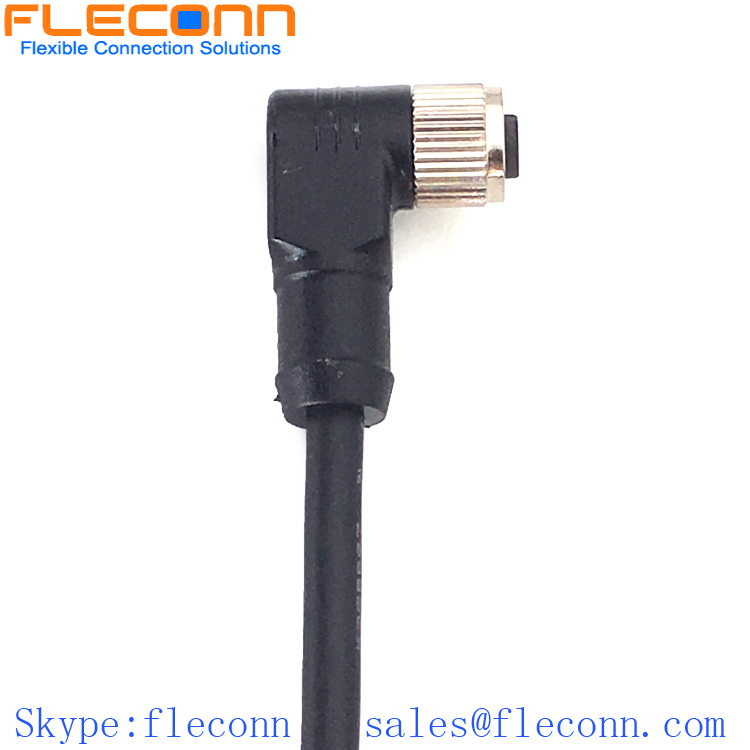

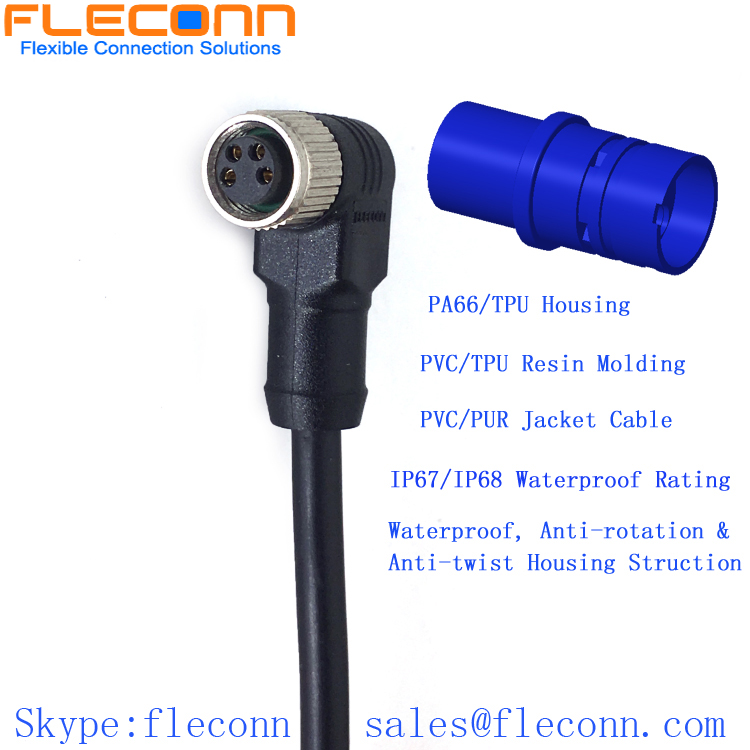

M8 4 Pin Female Cable

Item No.: M8-AF-RA-04P-1M-TPU
FLECONN can produce straight and right angle m8 4 pin female cable for various signal sensor.
Product series: M8 Cable Assembly
Wire gauge: 22-26AWG
Connector Gender: Female
Waterproof Rating: IP67
Contact number: 4Pin
Plug Guide: Right Ange
Description
Description

M8 4 Pin Female Cable Product Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 4 Pin 90 Degree Angle Cable product parameters




Product series: M8 Connector Cable Connector Gender: Female
Industry standard: IEC 61076-2-104 Connector core number: 4Pole
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
Wire cover: PVC/PUR


M8 4 Pin Overmoulded Female Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 4 Pin Connector Cable
M8 4 Pin Female Connector Cable, 90 Degree Angle Overmoulded M8 Sensor Cable

M8 4-Position 90 Degree Angle Molded Female Connector Cable


M8 4-Pole Right Angle Female Cable, Circular Aviation Connector


M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset


M8 4 Pin Right Angle Female Connector Cable

M8 4 Pos Right Angled Female Cable, IP67 IP68 Waterproof Connector


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
