Custom M12 A Code 8 Pins Y Shape Sensor Cable Description
FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.
M12 Y Shape Waterproof Overmolded Cable product parameters
Product series: M12 Connector |
Connector Gender: 1xFemale, 2xMale |
Connector coding: A B C D Coded |
Connector core number: 8P |
Industry standard: IEC61076-2-101 |
Connector type: Field assembly |
Plug Guide: Y-Shape |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 22AWG-28AWG |
Connection method: threaded connection |
Rated current: 1A~4A |
Connector conductor: copper gold plated |
Rated voltage: 250V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M12 8 Pin Y-Type Waterproof Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M12 Y Shape Waterproof Overmolded Cable Adapter

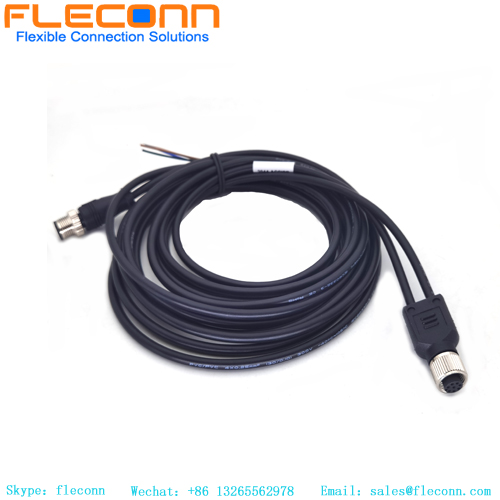

![Custom M12 A Code 8 Pins Y Shape Sensor Cable Custom M12 A Code 8 Pins Y Shape Sensor Cable](/u_file/2307/products/12/283710e88a.jpg)

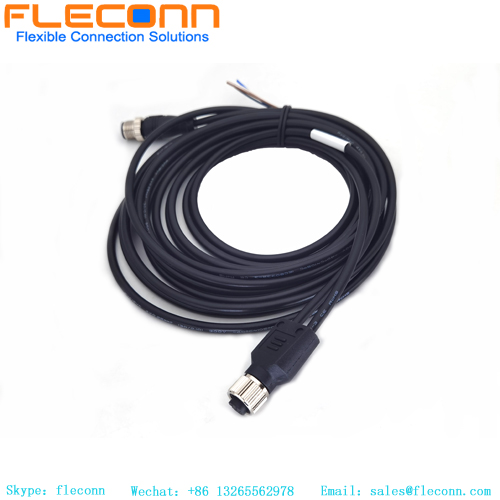

![M12 Y Shape Waterproof Overmolded Cable M12 Y Shape Waterproof Overmolded Cable](/u_file/2307/products/12/4ca8f2f885.jpg)

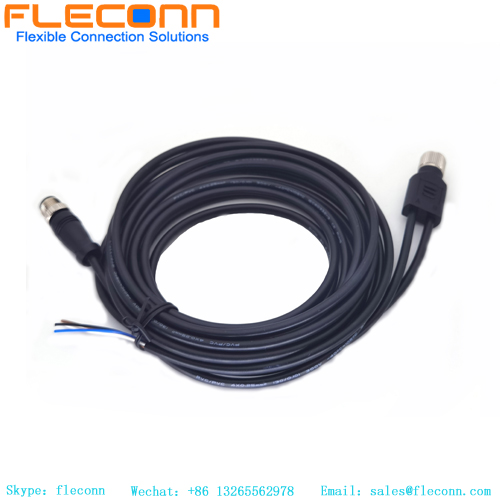

![M12 8 Pin Y-Type Waterproof Cable M12 8 Pin Y-Type Waterproof Cable](/u_file/2307/products/12/4c2379f7bc.jpg)

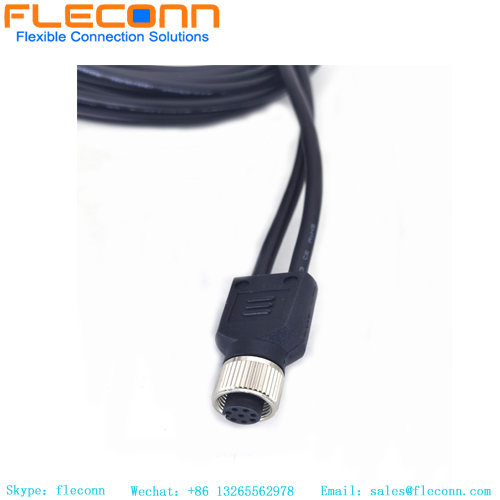

![Custom M12 A Code 8 Pins Y Shape Female Male Overmolded Cable Custom M12 A Code 8 Pins Y Shape Female Male Overmolded Cable](/u_file/2307/products/12/9a67008c1a.jpg)

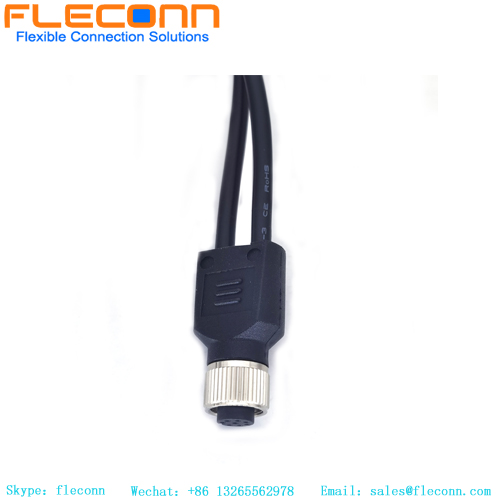

![Custom Waterproof Y Shape Splitter M12 Cable Custom Waterproof Y Shape Splitter M12 Cable](/u_file/2307/products/12/ea728acdd2.jpg)
