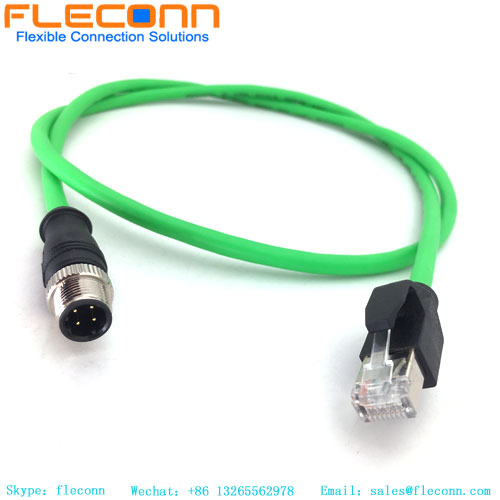

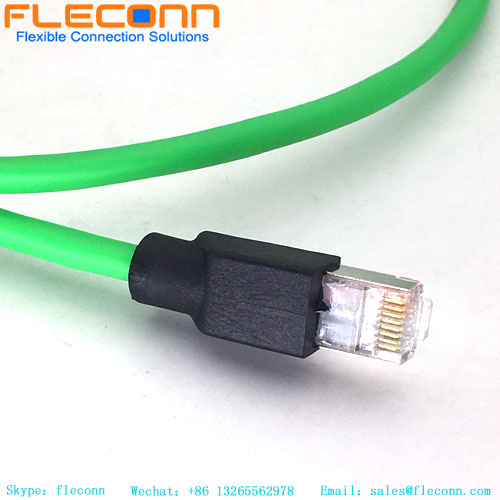

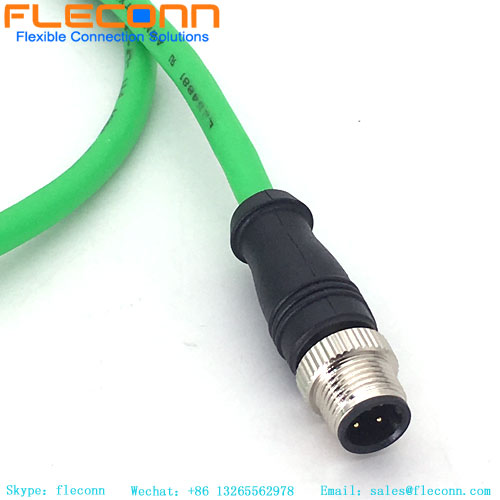

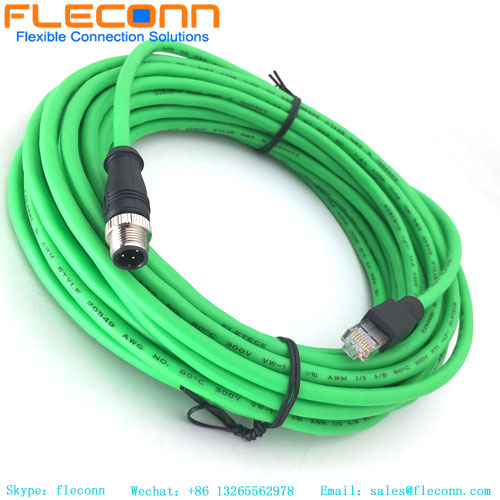

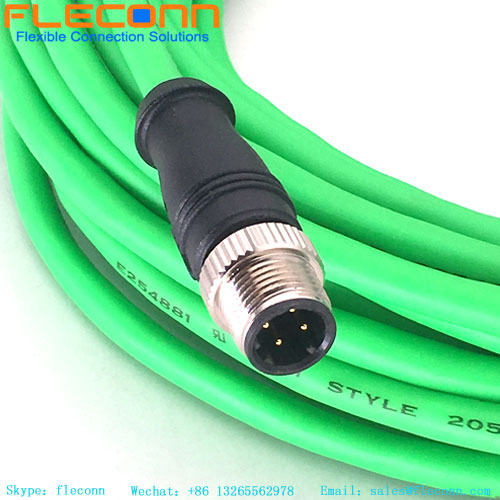

M12 D-Coded To RJ45 Connector Cable Product Description
M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.
M12 To RJ45 Connector Cable product parameters
Product series: M12 Connector Cable |
Connector Gender: Male |
Connector code: D-Coded type |
Connector core number: 4P |
Industry standard: IEC61076-2-101 |
Connector type: Single head with cable |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Wiring method: welding wire |
Adapter wire gauge: 20-26AWG |
Connection method: threaded connection |
Connector rubber core: PA66 |
Injection material: TPU |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 250V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
Applicable temperature: -20°- +80°
|
Wire cover: PVC/PUR
|
M12 D-Coded Connector Cable Applications
![M12 Cable FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.](/u_file/2304/photo/fb63010390.jpg)
