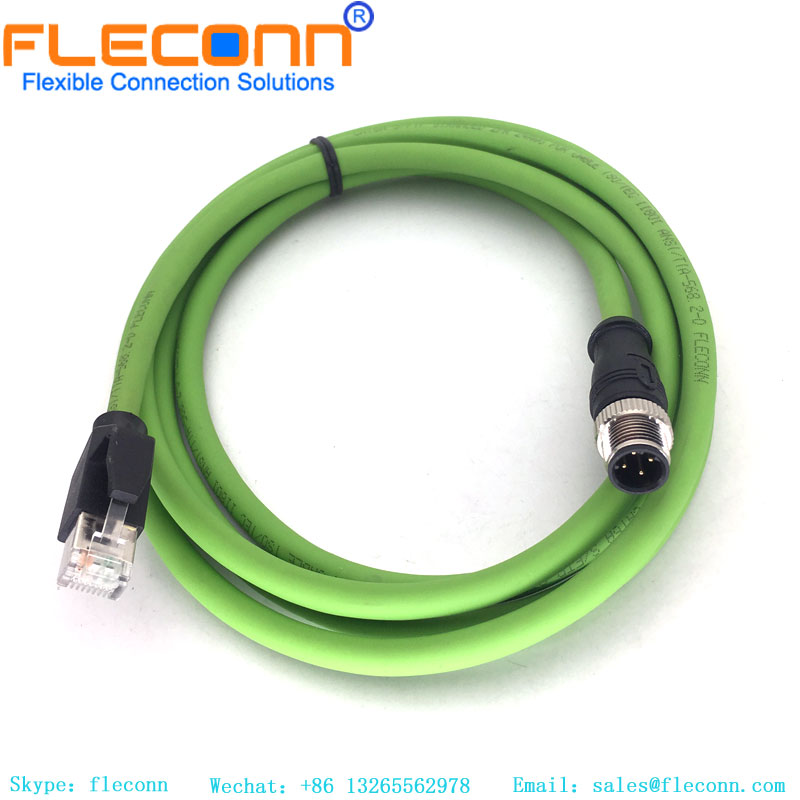

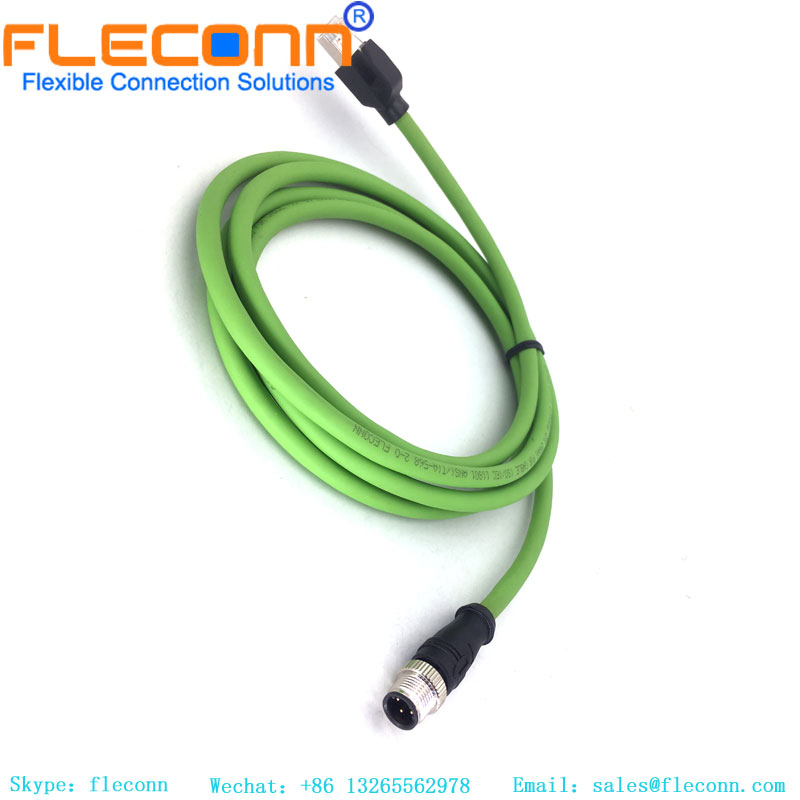

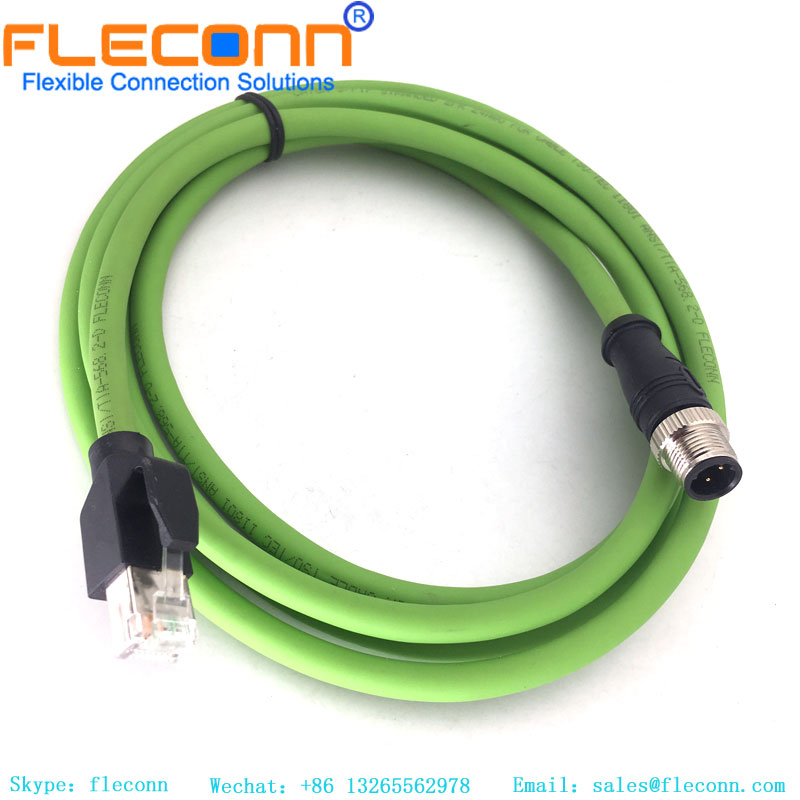

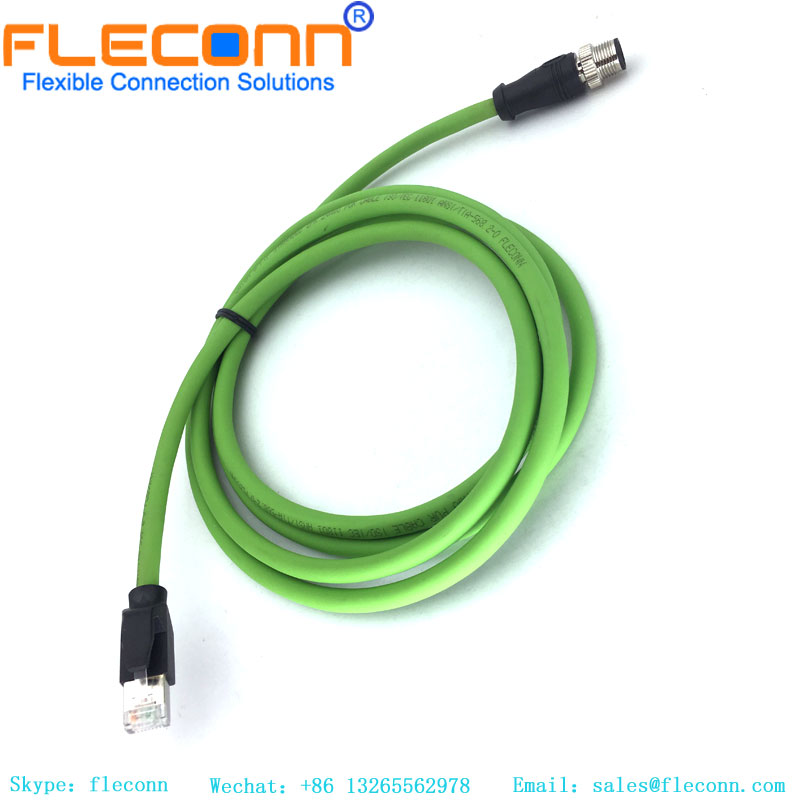

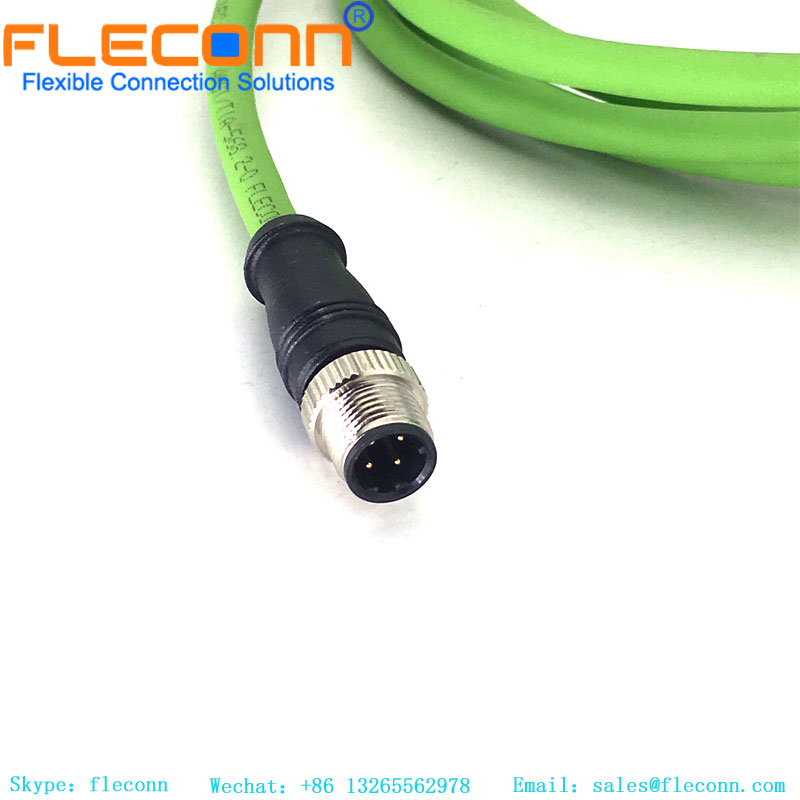

M12 D Coded Cable Description
M12 D-Coded To Rj45 Cable has been overmolded before leaving the factory. Our normal cable outer jacket's material is PUR or PVC, and the internal core wire insulation maybe PVC, SR-PVC, PP, PE required according to the application of the product. The core wire conductor may be 22AWG, 24AWG, 26AWG, 28AWG with unique insulation color code. The single wire conductor is mult-strands and soldered into each terminal on the m12 molding type connector. The outer moulding material of all of our m12 connector and cable is TPU resin. The matched M12 board-end connectors (sockets) are m12 panel mount connector with soldered wire terminals and PCB DIP terminals. There are two types of m12 pcb panel mount connector with straight and 90 degree right angle. This M12 4 Pin D-Coded to RJ45 cable can reach IP67 / IP68 waterproof rating according to customer's application requirements.
M12 To RJ45 Cable product parameter
Product series: M12 Connector Cable |
Connector Gender: Male |
Connector code: D-Coded type |
Connector core number: 4Pin |
Industry standard: IEC61076-2-101 |
Connector type: Single head with cable |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Wiring method: welding wire |
Adapter wire gauge: 20-26AWG |
Connection method: threaded connection |
Connector rubber core: PA66 |
Injection material: TPU |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 250V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
Applicable temperature: -20°- +80°
|
Wire cover: PVC/PUR
|
D Coded Ethernet Cable Applications
