M12 8 Pin Rear Mount Connector With Molex 510210800 Wire Harness Product Description
M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector, we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.
M12 8 Pole Front Fastened Connector With Molex Connector Cable product parameters
Product series: M12 Panel Mount Connector |
Connector Gender: Male |
Connector code: A type |
Connector core number: 8P |
Industry standard: IEC61076-2-109 |
Connector type: Panel type, Rear Fastened |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 26AWG |
Connection method: threaded connection |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 250V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M12 8 Pin Panel Mount Connector Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
M12 8 Pin Male Panel Mount Connector Cable

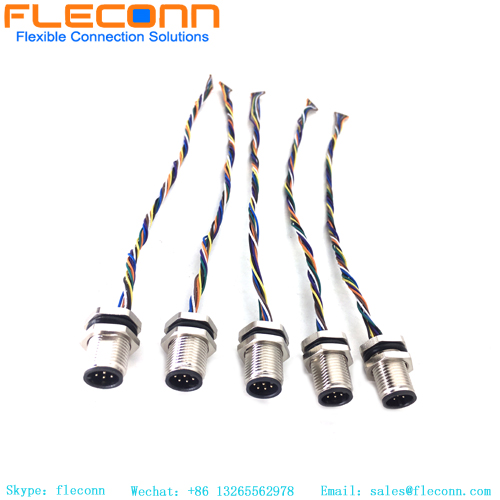

![M12 8 Pin Male Panel Mount Connector M12 8 Pin Male Panel Mount Connector](/u_file/2308/products/25/b2dc3a0ca3.jpg)

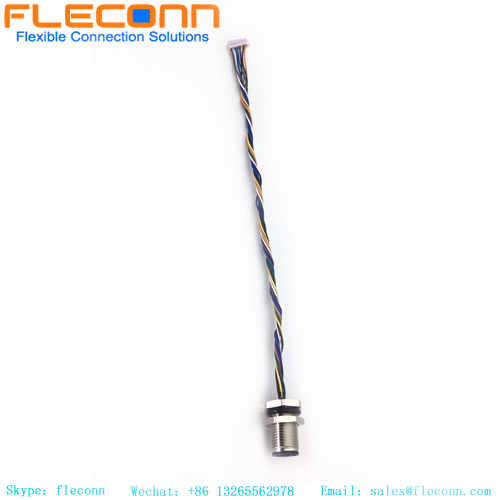

![M12 8 Pin Rear Mount Connector With Molex 510210800 Wire Harness M12 8 Pin Rear Mount Connector With Molex 510210800 Wire Harness](/u_file/2308/products/25/1a7cce311b.jpg)

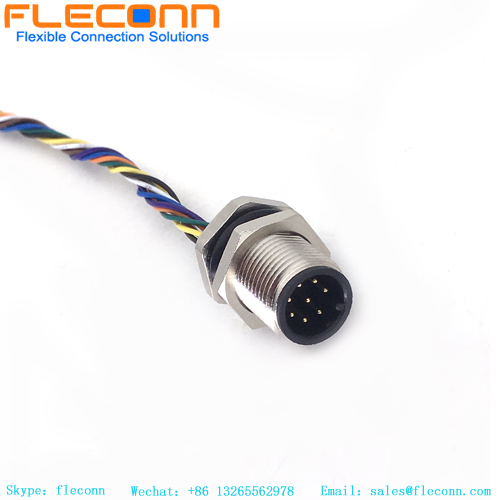

![M12 8 Pole Front Fastened Connector With Molex Connector Cable M12 8 Pole Front Fastened Connector With Molex Connector Cable](/u_file/2308/products/25/62a8e7ca2a.jpg)
![M12 8 Pos Male Panel Mount Connector Cable M12 8 Pos Male Panel Mount Connector Cable](/u_file/2308/products/25/5a83033a35.jpg)

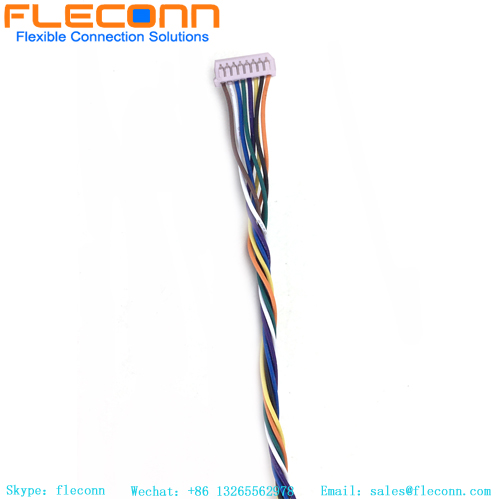

![M12 8 Pin Panel Mount Connector Cable M12 8 Pin Panel Mount Connector Cable](/u_file/2308/products/25/3a98f14e61.jpg)
![M12 Panel Mount Connector FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.](/u_file/2208/photo/8ce4327a67.jpg)
