M12 8 Pin Female Front Mount Connector Wire Harness Description
M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector, we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.
M12 8 Pole Rear Fastened Connector With Cable product parameters
Product series: M12 Panel Mount Connector |
Connector Gender: Female |
Connector code: X type |
Connector core number: 8P |
Industry standard: IEC61076-2-109 |
Connector type: Panel type, front lock |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 26AWG |
Connection method: threaded connection |
Rated current: 0.5A |
Connector conductor: copper gold plated |
Rated voltage: 50V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M12 8 Pos Female Panel Mount Connector Wire Harness

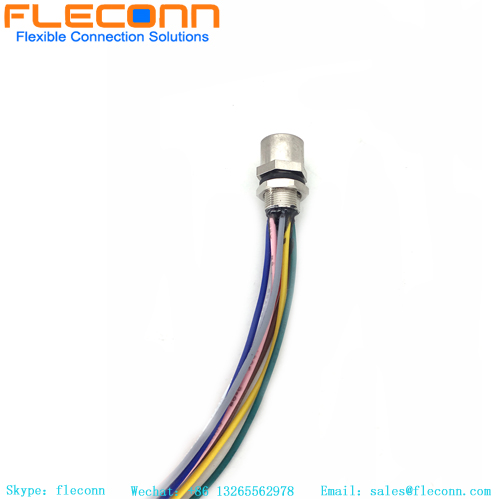

![M12 8 Pin A-coded Female Panel Mount Connector Wire Harness M12 8 Pin A-coded Female Panel Mount Connector Wire Harness](/u_file/2308/products/03/acdc335780.jpg)

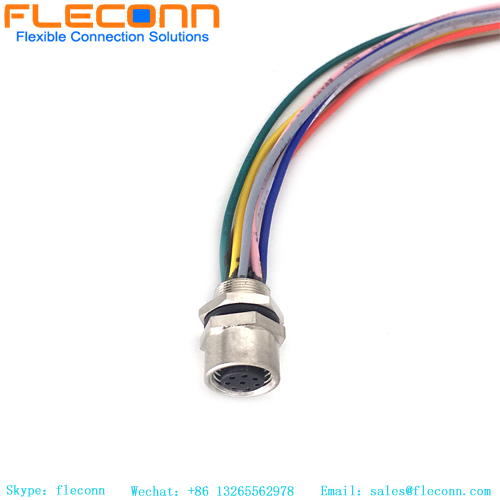

![M12 8 Pin Female Front Mount Connector Wire Harness M12 8 Pin Female Front Mount Connector Wire Harness](/u_file/2308/products/03/bbb644680e.jpg)

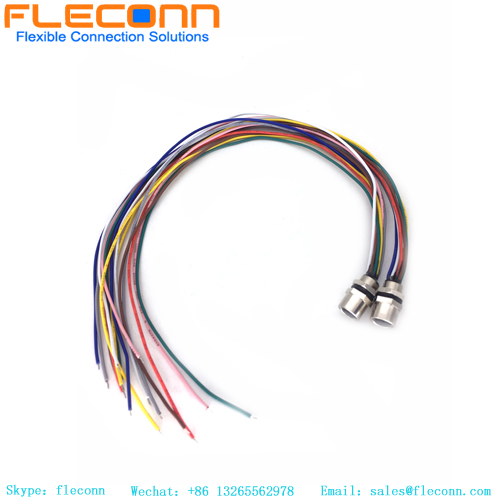

![M12 8 Pole Rear Fastened Connector With Cable M12 8 Pole Rear Fastened Connector With Cable](/u_file/2308/products/03/73e85b936f.jpg)

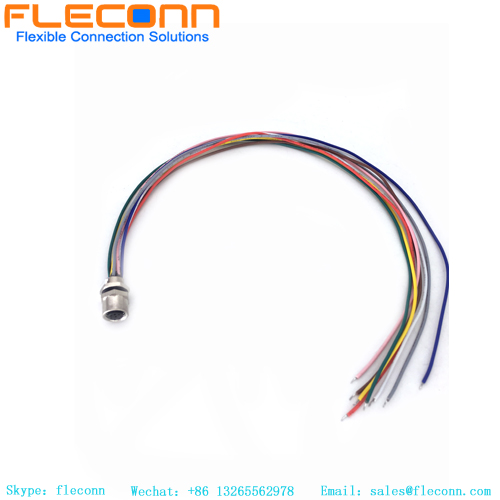

![M12 8 Pos Female Panel Mount Connector Wire Harness M12 8 Pos Female Panel Mount Connector Wire Harness](/u_file/2308/products/03/691335e621.jpg)

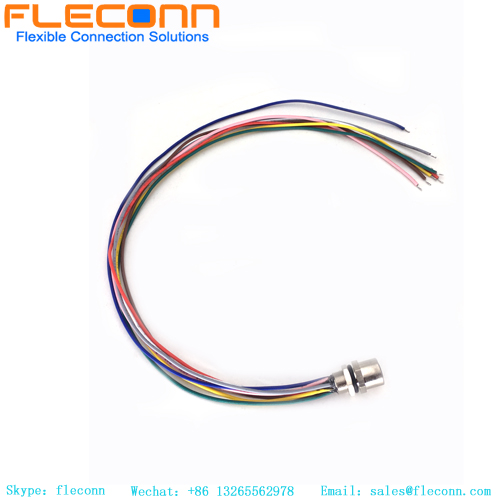

![M12 A-coded Front Mount Connector With Cable M12 A-coded Front Mount Connector With Cable](/u_file/2308/products/03/c65b7b0bc1.jpg)
![M12 Panel Mount Connector FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.](/u_file/2208/photo/8ce4327a67.jpg)
