M12 5 Pin Panel Mount Connector With Cable Description
M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector, we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.
M12 5 PIn Panel Mount Connector,Rear Fasting,Male product parameters
Product series: M12 Panel Mount Connector |
Connector Gender: Female |
Connector code: X type |
Connector core number: 5P |
Industry standard: IEC61076-2-109 |
Connector type: Panel type, front lock |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 26AWG |
Connection method: threaded connection |
Rated current: 0.5A |
Connector conductor: copper gold plated |
Rated voltage: 50V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M12 5 Pole A-coded Front Mount Connector Wire Harness

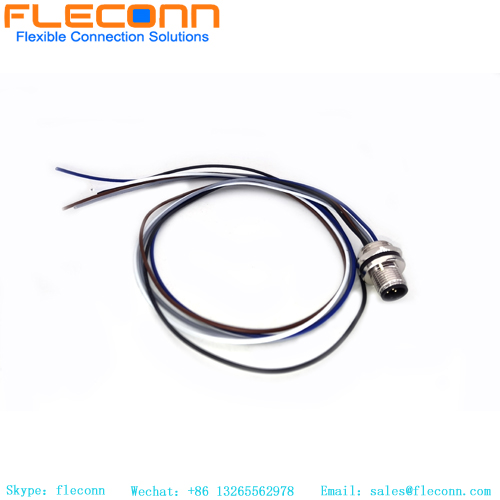

![M12 5 Pin Male Panel Mount Connector Cable M12 5 Pin Male Panel Mount Connector Cable](/u_file/2308/products/01/2dda43384d.jpg)

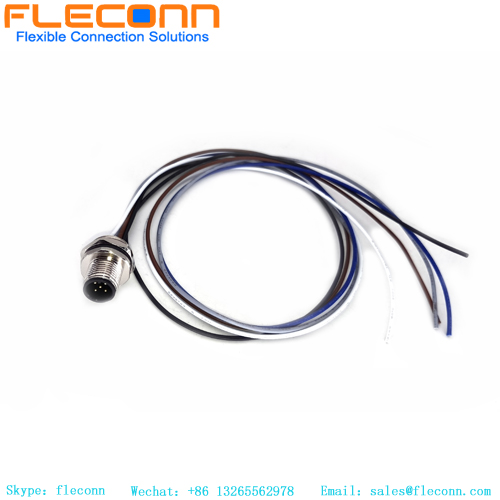

![M12 5 Pin Panel Mount Connector With Cable M12 5 Pin Panel Mount Connector With Cable](/u_file/2308/products/01/211c666198.jpg)

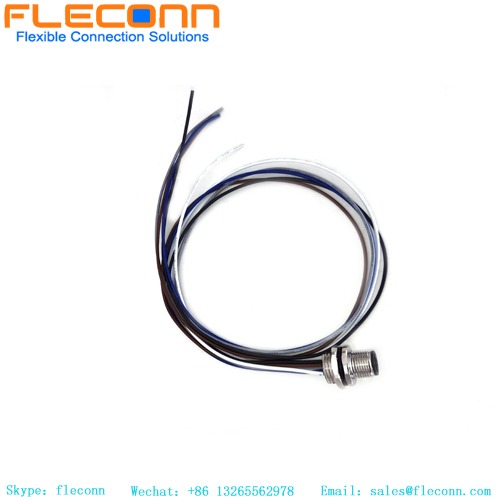

![M12 5 PIn Panel Mount Connector,Rear Fasting,Male M12 5 PIn Panel Mount Connector,Rear Fasting,Male](/u_file/2308/products/01/4deebecbcc.jpg)

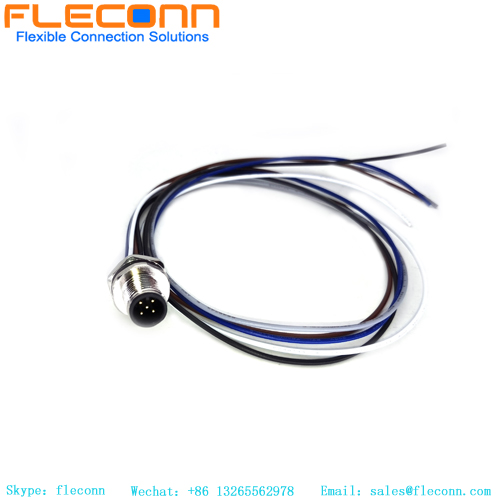

![M12 5 Pole A-coded Front Mount Connector Wire Harness M12 5 Pole A-coded Front Mount Connector Wire Harness](/u_file/2308/products/01/7661ad8406.jpg)

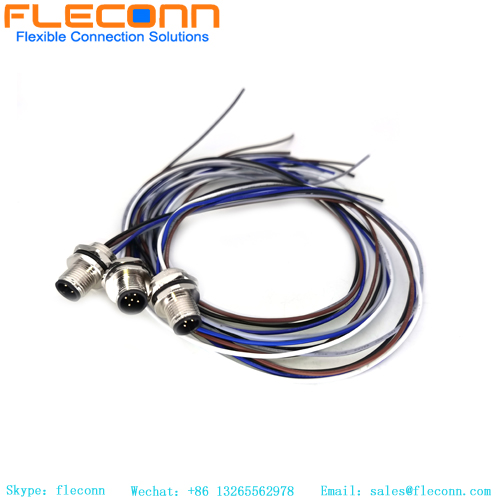

![M12 5 Pos Rear Fastening Connector Wire Harness M12 5 Pos Rear Fastening Connector Wire Harness](/u_file/2308/products/01/0f11ddeb55.jpg)
