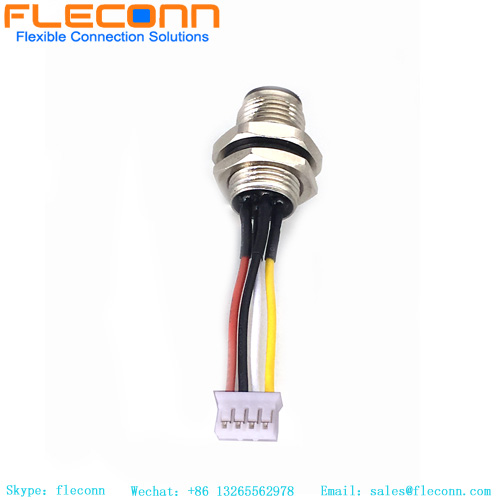

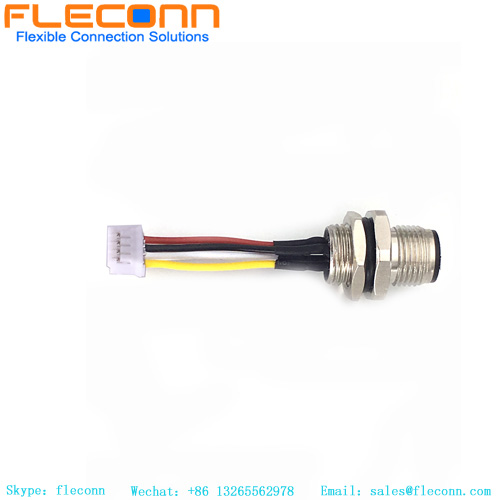

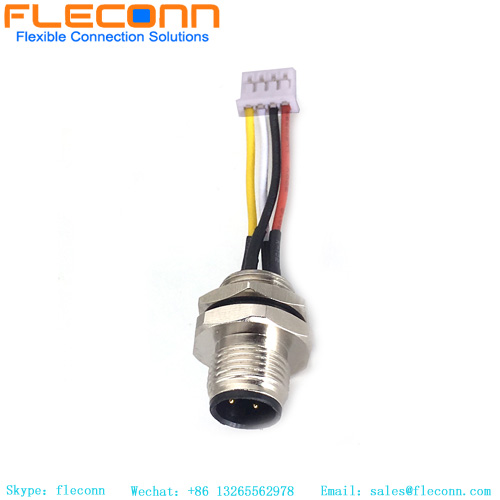

M12 4 Pin Male Front Mount Connector Wire Harness Description
M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector, we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.
M12 4 Pole Panel Mount Connector Cable product parameters
Product series: M12 Panel Mount Connector |
Connector Gender: Male |
Connector code: X type |
Connector core number: 4P |
Industry standard: IEC61076-2-109 |
Connector type: Panel type, front lock |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 26AWG |
Connection method: threaded connection |
Rated current: 0.5A |
Connector conductor: copper gold plated |
Rated voltage: 50V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |

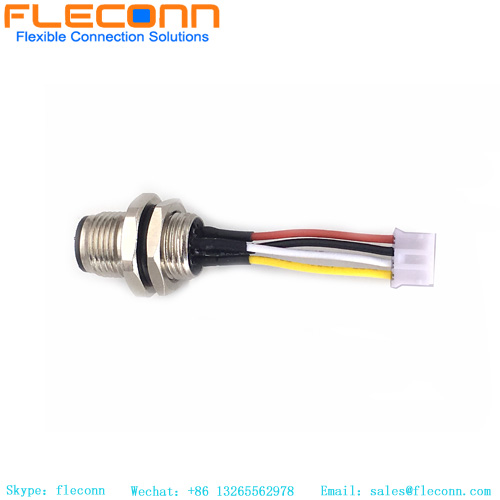

M12 A-Coded 4 Pin Rear Fastened Connector With JST Connector Cable
