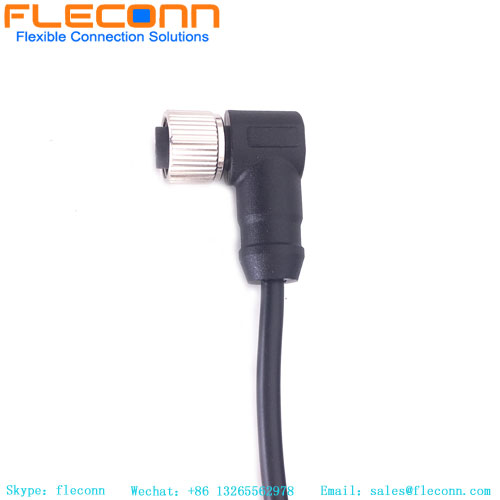

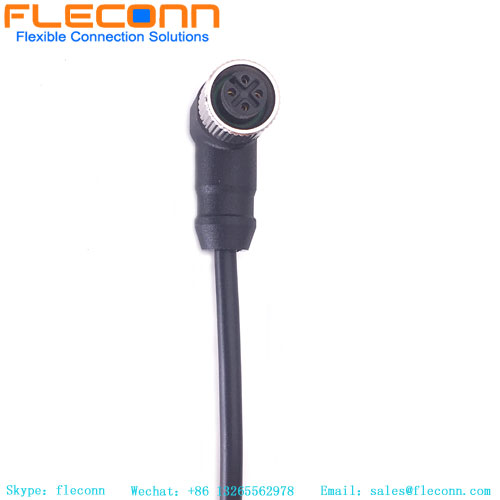

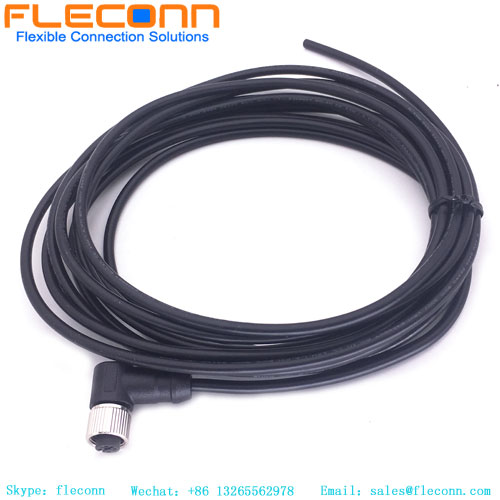

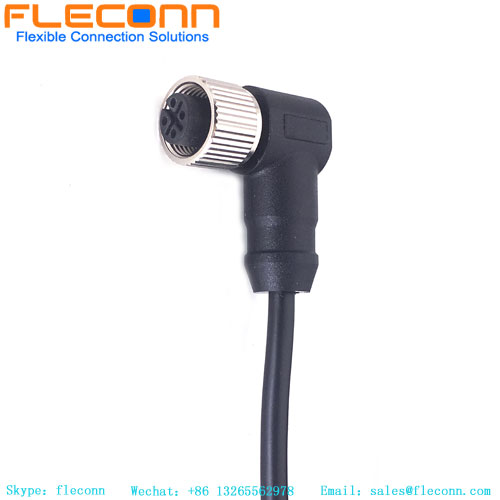

M12 4 Pin Cable Assembly,4 Pole Right Angle IP67 Waterproof Cable

Item No.: M12-AF-RA-04P-1M
Product series: M12 Connector Cable
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Right Angle
Description
Description

M12 4 Pin Cable Assembly Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 4 Pin Cable Assembly product parameters




Product series: M12 Connector Cable Connector Gender: Female
Connector code: A type Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
Wire cover: PVC/PUR


M12 4 Pin Cable Assembly Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 4 Pin Cable Assembly
M12 Female To Rj45 Cable

M12 4 Pin Connector Cable,90 Degree Angle Female Overmolded Cable with IP67 waterproof rating.

M12 A-code 4 Pin Cable, 90 Degree Right Angle Female Cable

M12 A-coded 4 Pin Female Right Angle Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
