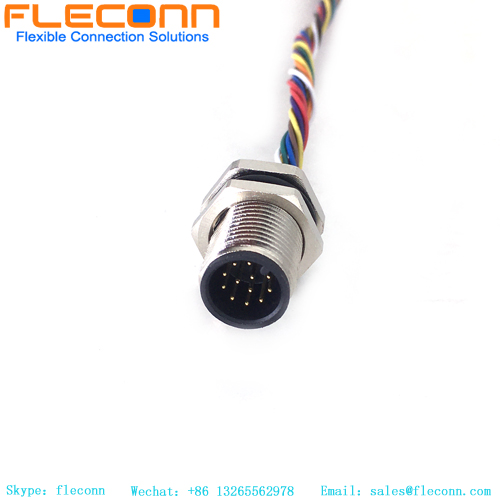

M12 12 Pin Male Panel Mount Connector With Molex 510211200 Connector Wire Harness

Item No.: M12-A-M-ST-12P-510211200-PM-200MM
Product series: M12 Panel Mount Connector
Connector code: A-coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 12-Pole
Plug Guide: Straight
Description
Description

M12 12 Postions Male Panel Mount Connector With Molex 510211200 Connector Wire Harness Product Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.

M12 12 Pin Male Front Fastened Connector Cable product parameters




Product series: M12 Panel Mount Connector Connector Gender: Male
Connector code: A-code Connector core number: 12P
Industry standard: IEC61076-2-109 Connector type: Panel type, Rear Fastened
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 24AWG Connection method: threaded connection
Rated current: 1A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 12 Pole Rear Mount Connector Wire Harness Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

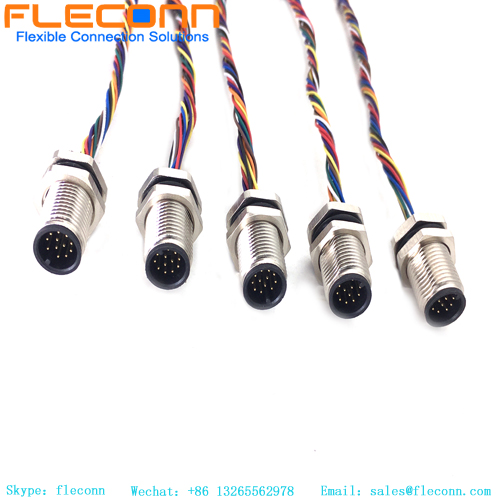

M12 A-coded 12 Pin Male Panel Mount Connector Cable
M12 12 Pin Male Front Fastened Connector Cable

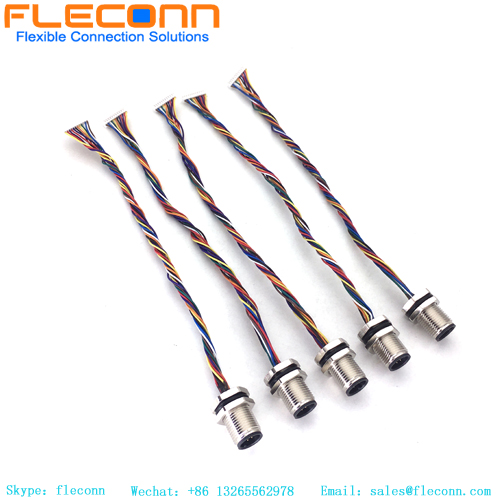

M12 12 Pole Rear Mount Connector Wire Harness

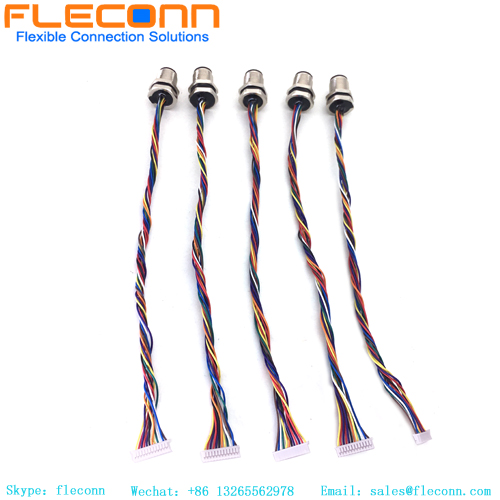

M12 12 Pos Panel Mount Connector With Molex 510211200 Connector Wire Harness

M12 A-coded 12 Pin Male Panel Mount Connector Cable

M12 Panel Mount Connector With 24AWG Cable

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
