8 Pin TE MATE-N-LOK Series 926308-1 Connector Wire Harness
We can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance.
6.35mm Pitch Wire-to-Wire 8 Pin 926308-1 Connector Cable Features
Product Name: TE Connector Wire Harness |
Gender:Female |
Connector Mounting Type : Cable Mount |
Voltage Maximum:150V |
Cable Length and Color:Customized |
Wire/Cable Type:UL 1007 |
Assembly Configuration:Dual Ended Connectors |
Material Resin:Nylon |
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG |
Certificate: RoHS CE |
Operating temperature, fixed installation: -40 – 105 °C deg. |
Pitch Mating Interface:6.35mm |
Insulation resistance: ≥100mΩ |
Material Metal:Brass |
TE Pitch 6.35mm 926308-1 8 PIn Connector Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
TE Rectangular Power Connectors,8 PIn 926308-1 Wire Harness

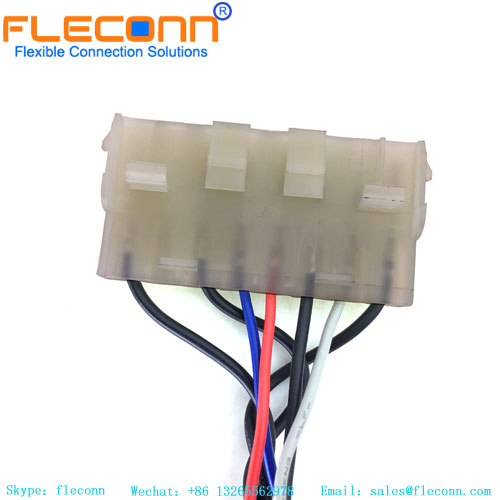

![6.35mm Pitch Wire-to-Wire 8 Pin 926308-1 Connector Cable TE Connector Wire Harness](/u_file/2310/products/18/15dcf641db.jpg)

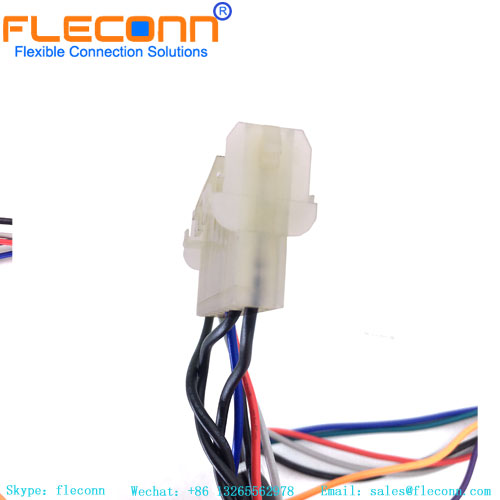

![8 PIn TE MATE-N-LOK Series 926307-1 Connector Wire Harness 8 PIn TE MATE-N-LOK Series 926307-1 Connector Wire Harness](/u_file/2310/products/18/d1ae853fdf.jpg)

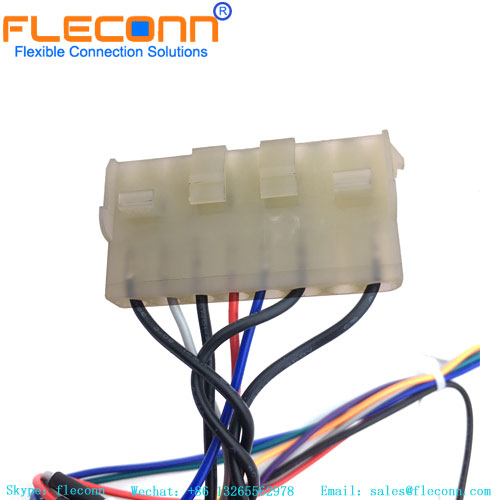

![TE Pitch 6.35mm 926308-1 8 PIn Connector Cable TE Pitch 6.35mm 926308-1 8 PIn Connector Cable](/u_file/2310/products/18/d6d4aa28e6.jpg)

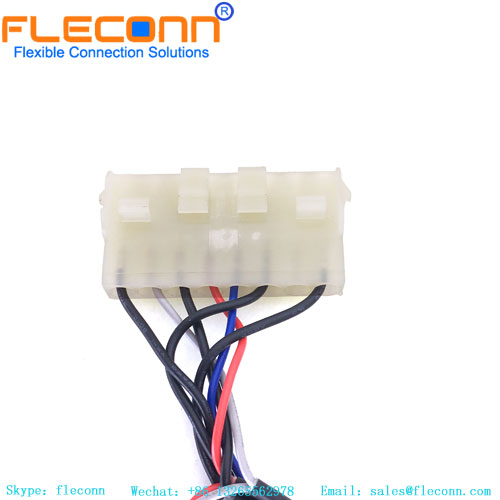

![TE Rectangular Power Connectors,8 PIn 926308-1 Wire Harness TE Rectangular Power Connectors,8 PIn 926308-1 Wire Harness](/u_file/2310/products/18/bc3bea3aa8.jpg)

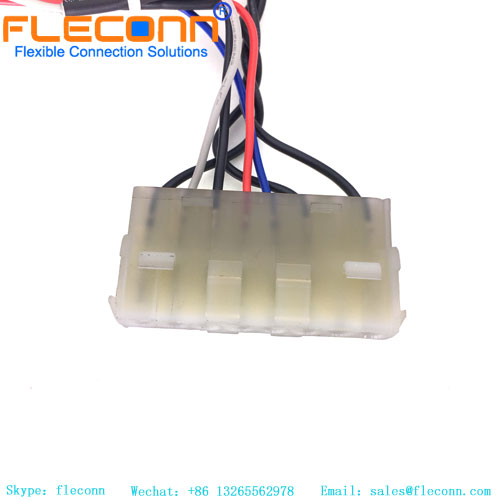

![TE Universal MATE-N-LOK Wire Harness ,6.35mm Pitch 926308-1 Connector TE Universal MATE-N-LOK Wire Harness ,6.35mm Pitch 926308-1 Connector](/u_file/2310/products/18/3787ac8bdd.jpg)
