Mini 7/8" Sensor Connectors Product Description
FLECONN, as a professional connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female connector . A 7/8 connector typically refers to a specific type of RF (radio frequency) connector commonly used in telecommunications, broadcasting, and other industries where high-frequency signals need to be transmitted reliably. These connectors are often used in applications such as: Telecommunications、Broadcasting、Wireless Networks、Instrumentation、Industrial Applications、Aerospace and Defense.
7/8 4Pin Female Straight Assembled Connector product parameters
Product series: 7/8 Connector |
Connector Gender: Female |
Connector locking system: screw |
Connector core number: 4P |
Termination: screw clamp |
Cable outlet: 6.0-8.0 mm |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -25°- +80° |
Adapter wire gauge: max. 1.50 mm² / AWG 16 |
Connection method: threaded connection |
Rated current: 9.0A |
Connector conductor: copper gold plated |
Rated voltage: 300V |
Insulation resistance: ≥100mΩ |
7/8 4 Pin Female Soldered Wire Connector Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |

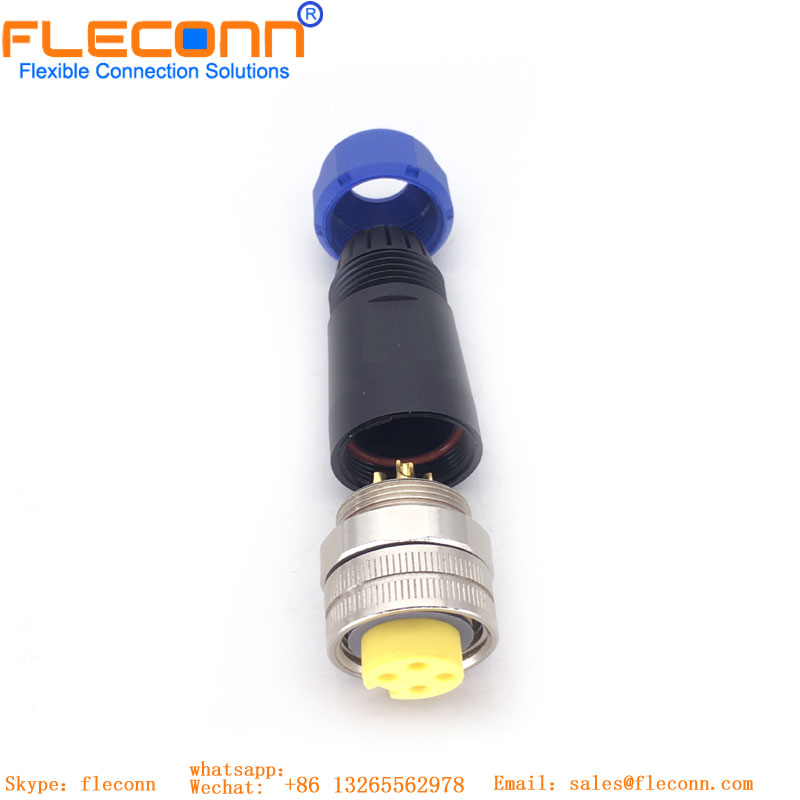

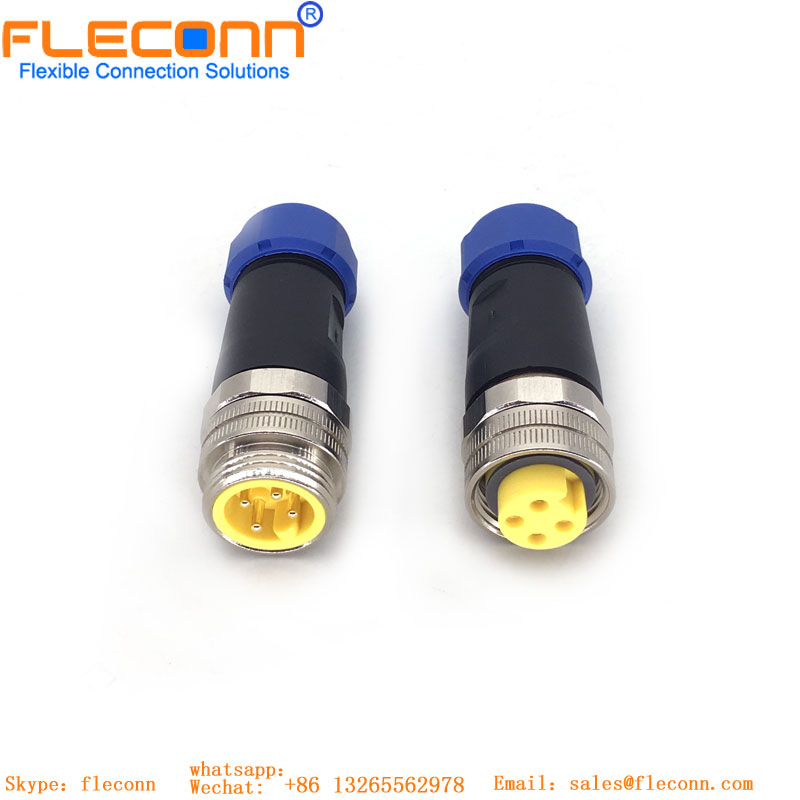

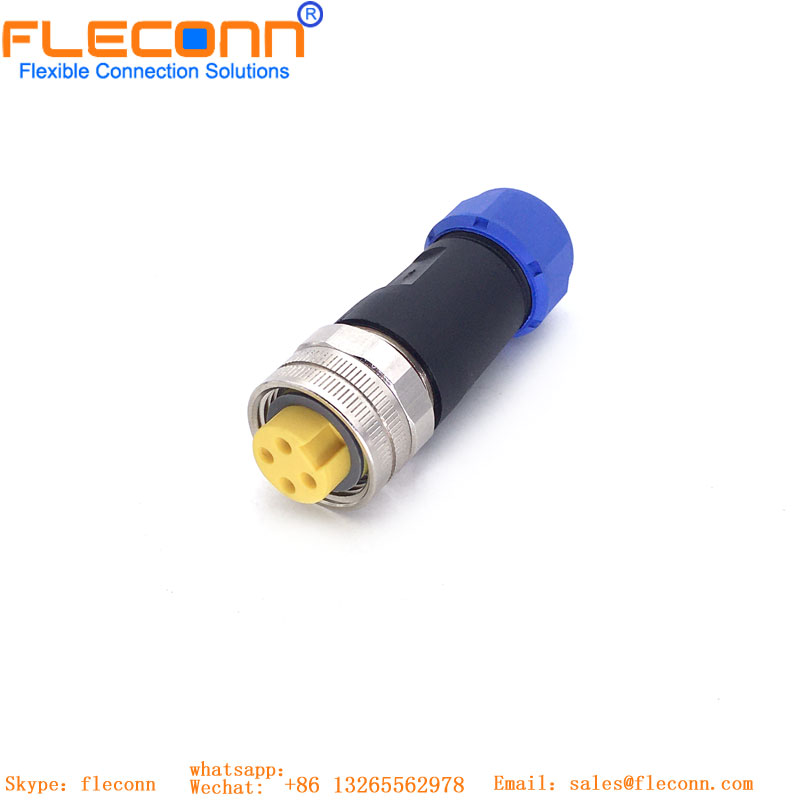

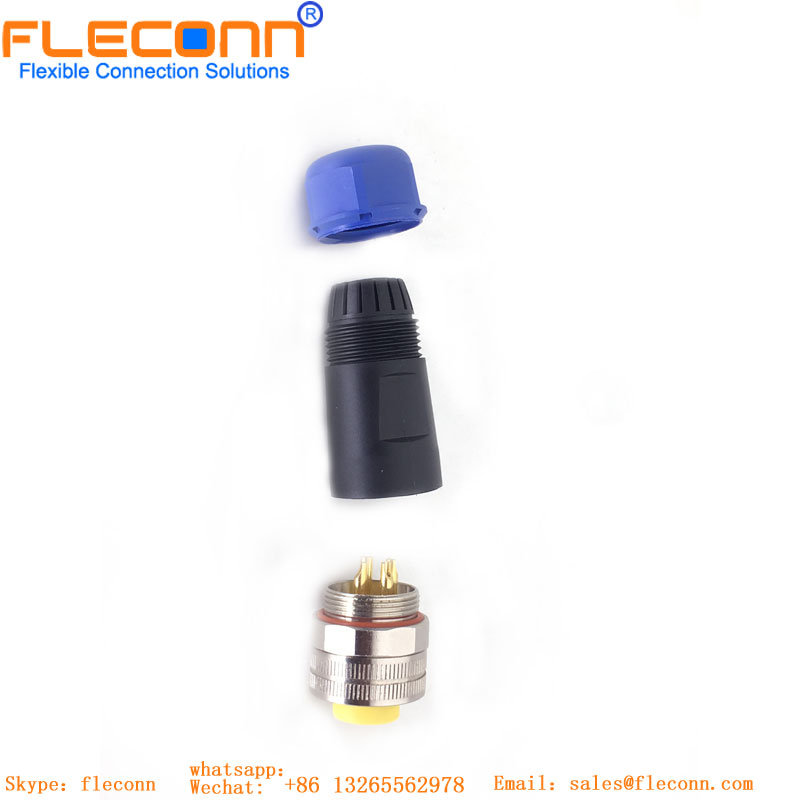

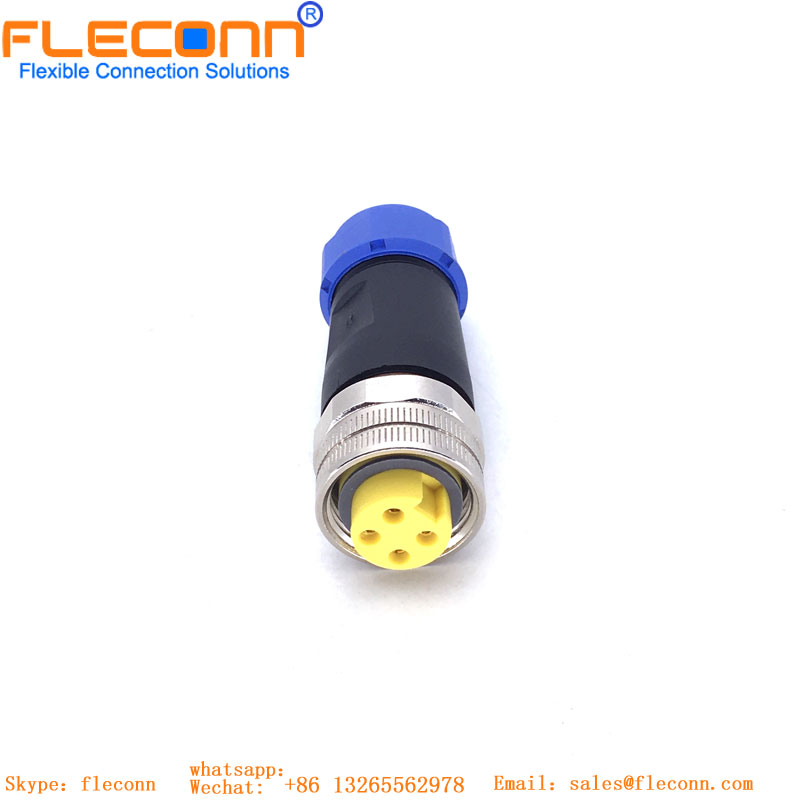

Mini 7/8" 4 Pin Female Connector Picture
![7/8 connector 4Pin Female Straight assembled connector 7/8 connector 4Pin Female Straight assembled connector](/u_file/2404/bdf312b50c.jpg)
![7/8 4 Pin Female Connector 7/8 4 Pin Female Connector](/u_file/2404/8ab1b585d1.jpg)
![7/8 4-core female head soldered assembly connector 7/8 4-core female head soldered assembly connector](/u_file/2404/84d589bb2a.jpg)
![7/8 circular Connector 7/8 circular Connector](/u_file/2404/4caabe879e.jpg)
![7/8 connector 4 Pin female soldered wire connector 7/8 connector 4 Pin female soldered wire connector](/u_file/2404/f1056c6b17.jpg)
![8/7 Connector](https://www.connector-wire-harness.com/u_file/2403/photo/1ab06c0158.jpg)
