7/8" 5 Pin Female Panel Mount Connector Product Description
FLECONN, as a professional connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female connector . A 7/8 connector typically refers to a specific type of RF (radio frequency) connector commonly used in telecommunications, broadcasting, and other industries where high-frequency signals need to be transmitted reliably. These connectors are often used in applications such as: Telecommunications、Broadcasting、Wireless Networks、Instrumentation、Industrial Applications、Aerospace and Defense.
7/8" 5Pin Female Rear Fastening Panel Mount Connector product parameters
Product series: 7/8 Connector |
Connector Gender: Female |
Connector locking system: screw |
Connector core number: 5P |
Termination: screw clamp |
Cable outlet: 6.0-8.0 mm |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -25°- +80° |
Adapter wire gauge: max. 1.50 mm² / AWG 16 |
Connection method: threaded connection |
Rated current: 9.0A |
Connector conductor: copper gold plated |
Rated voltage: 300V |
Insulation resistance: ≥100mΩ |
78 Female Front Panel Mount, 5 Pin Connector Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |

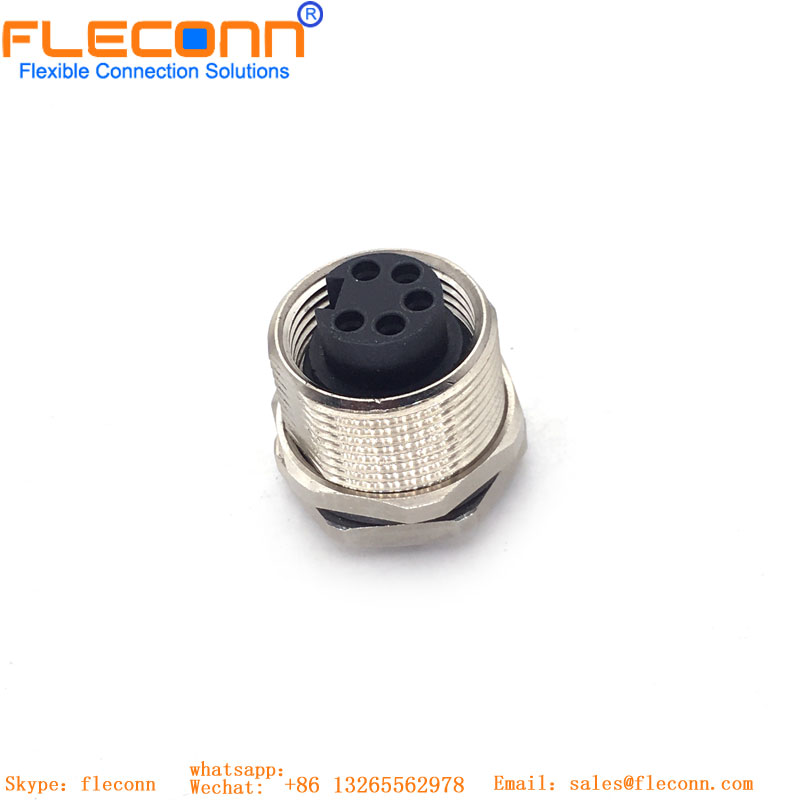

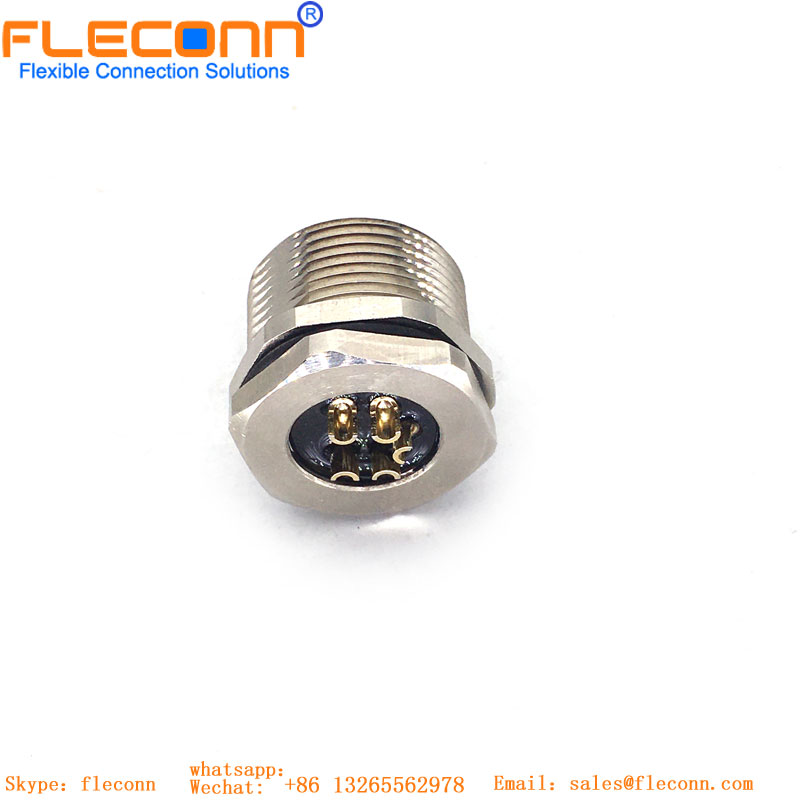

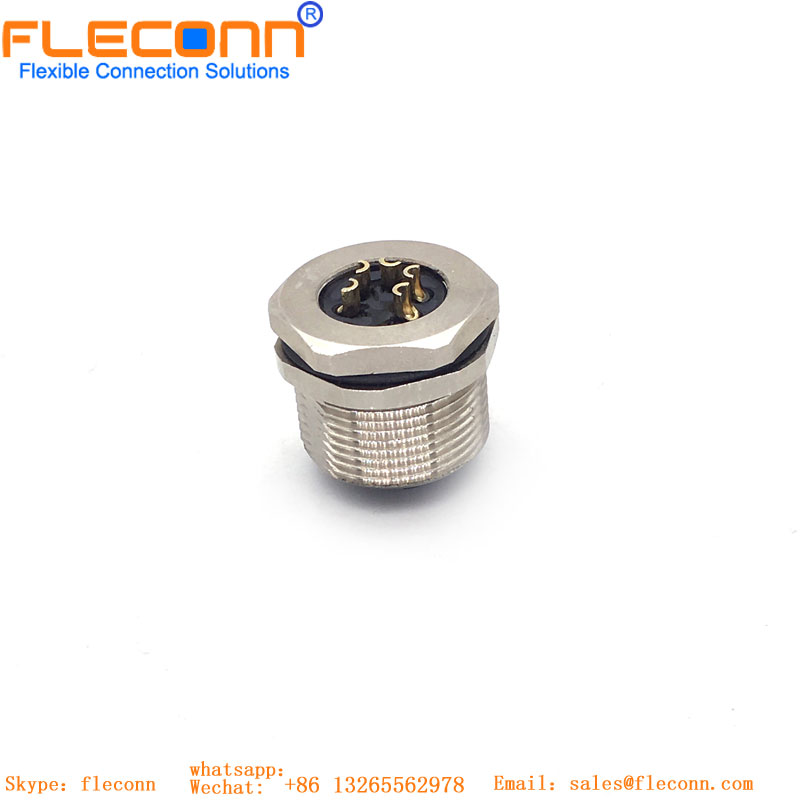

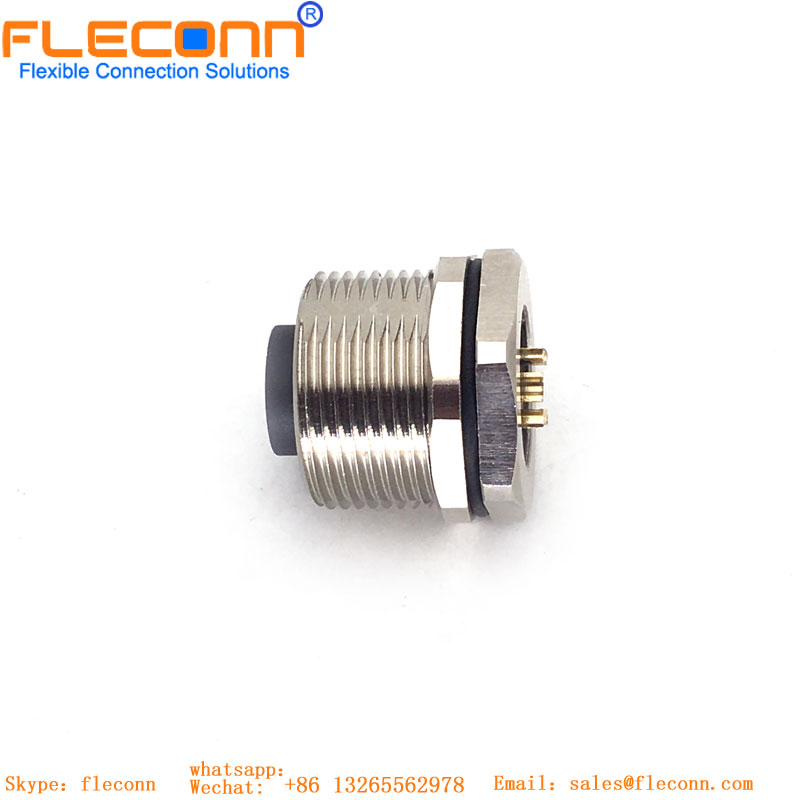

7/8" 5 Pin Female Panel Mount Connector Picture

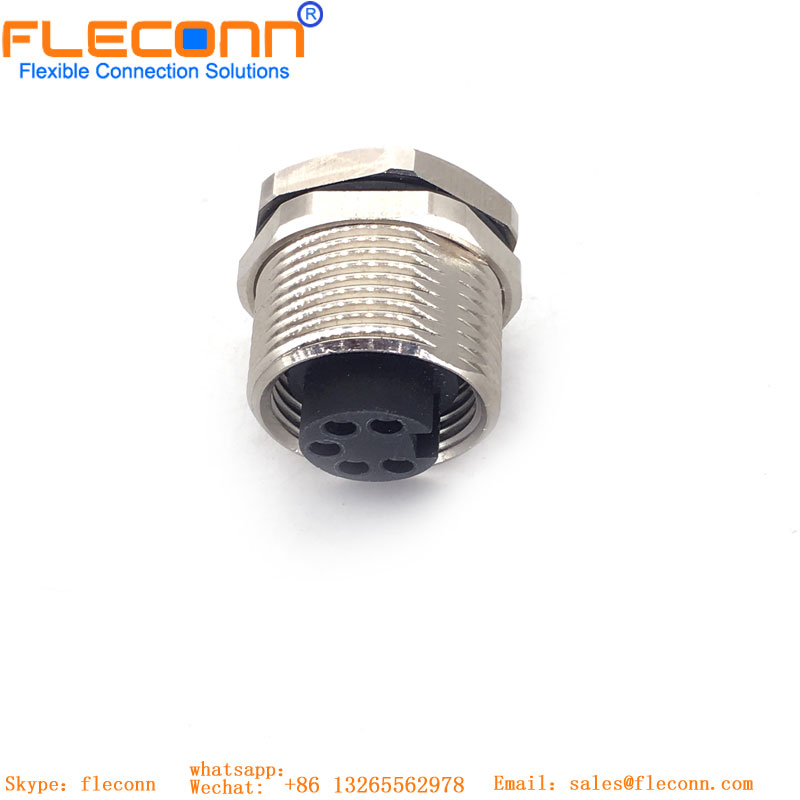

![7/8 5 Pin Female Panel Mount Connector 7/8 5 Pin Female Panel Mount Connector](/u_file/2404/products/03/955eba9ec4.jpg)
![7/8 5 Pin Female Rear Fastening Panel Mount Connector 7/8 5 Pin Female Rear Fastening Panel Mount Connector](/u_file/2404/66f406bd45.jpg)
![7/8 Female Front Panel Mount, 5 Pin Connector 7/8 Female Front Panel Mount, 5 Pin Connector](/u_file/2404/3583439e33.jpg)
![7/8 Panel Receptacle, Rear Mount ,female 7/8 Panel Receptacle, Rear Mount ,female](/u_file/2404/2a651879c1.jpg)
![Waterproof 7/8 5pins Panel Mount Female Connector Waterproof 7/8 5pins Panel Mount Female Connector](/u_file/2404/98e0d7c3ea.jpg)
