7/8" 4 Pin Signal Transmission Cable Product Description
FLECONN, as a professional connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female connector Cable . A 7/8 connector Cable typically refers to a specific type of RF (radio frequency) connector commonly used in telecommunications, broadcasting, and other industries where high-frequency signals need to be transmitted reliably. These connectors are often used in applications such as: Telecommunications、Broadcasting、Wireless Networks、Instrumentation、Industrial Applications、Aerospace and Defense.
7/8" 4 Pin Circular Male to Female Cable product parameters
Product series: 7/8 Connector Cable |
Connector Gender: Male To Female |
Connector locking system: screw |
Connector core number: 4P |
Termination: screw clamp |
Termination: moulded on the cable |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -25°- +80° |
Adapter wire gauge: max. 1.50 mm² / AWG 16 |
Connection method: threaded connection |
Rated current: 9.0A |
Connector conductor: copper gold plated |
Rated voltage: 300V |
Insulation resistance: ≥100mΩ |
European standard 7/8" 4 Pin Female Straight Connector Cable Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
7/8" 4 Pin Signal Transmission Cable Picture

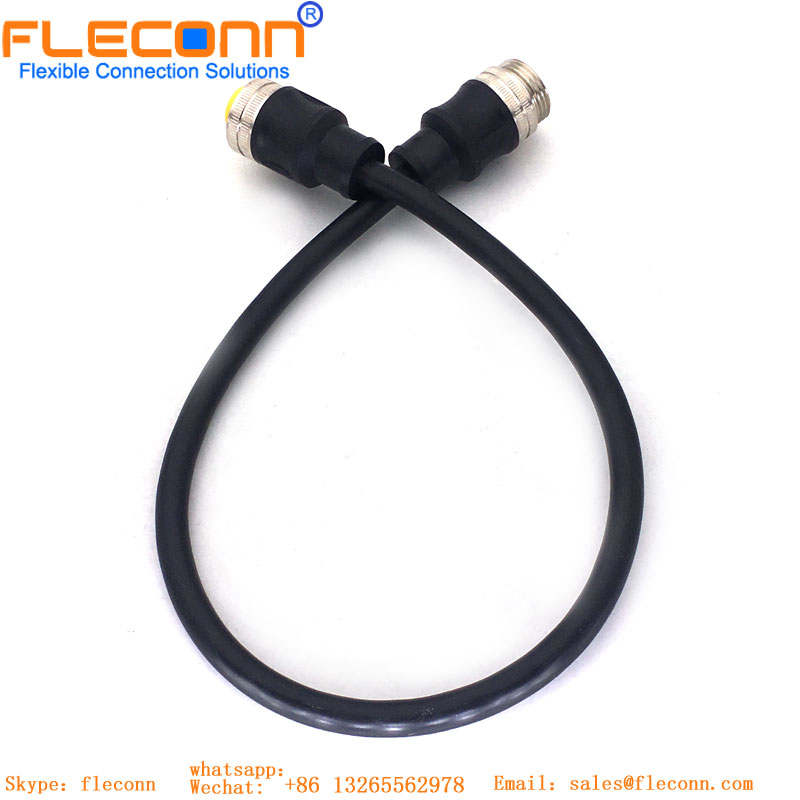

![7/8 4 Pin Straight Male To Female Cable 7/8 4 Pin Straight Male To Female Cable](/u_file/2404/products/01/c4b61aa7ab.jpg)

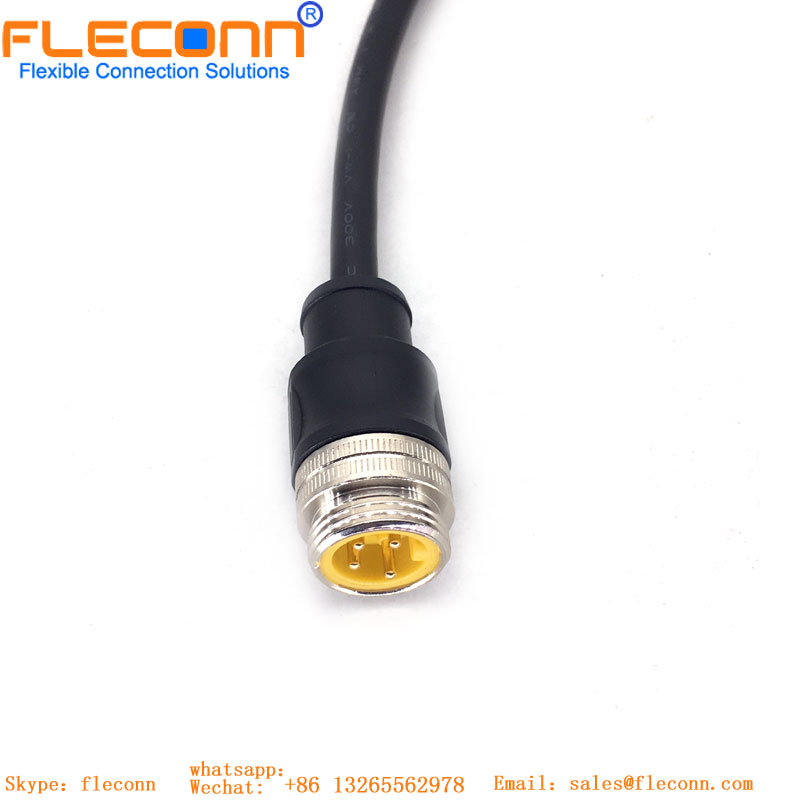

![7/8 4 Pin Circular Male Connector Cable 7/8 4 Pin Circular Male Connector Cable](/u_file/2404/products/01/e5cd37ade6.jpg)

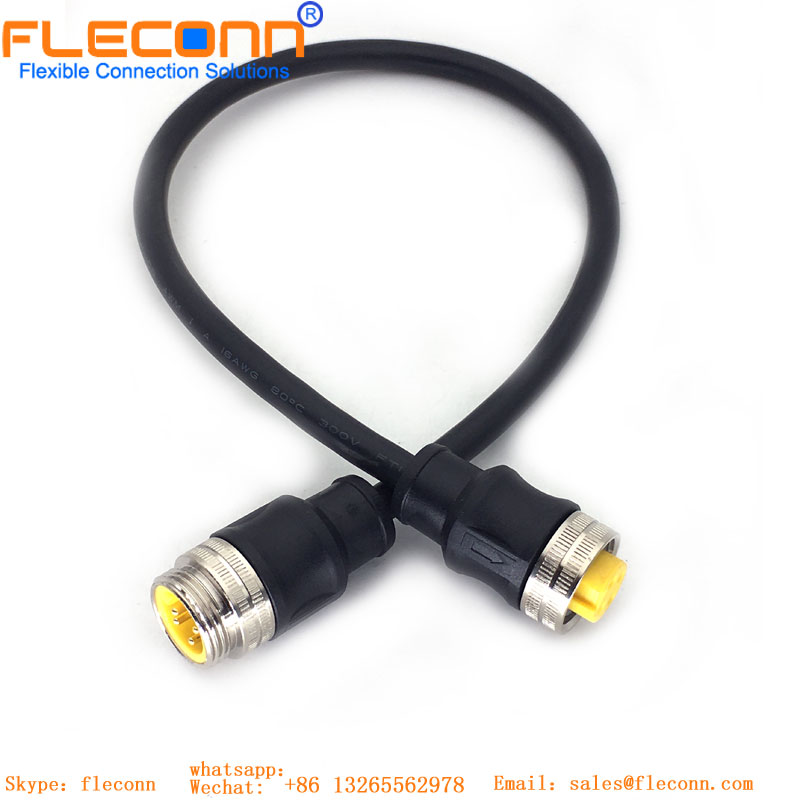

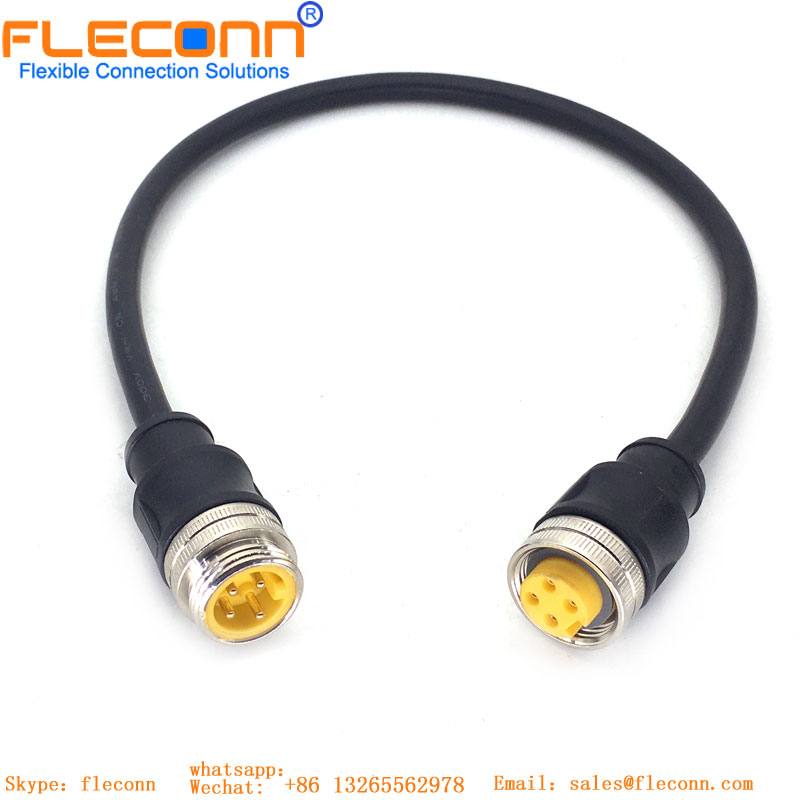

![7/8 4 Pin Circular Male to Female Cable 7/8 4 Pin Circular Male to Female Cable](/u_file/2404/products/01/09fa1edac9.jpg)

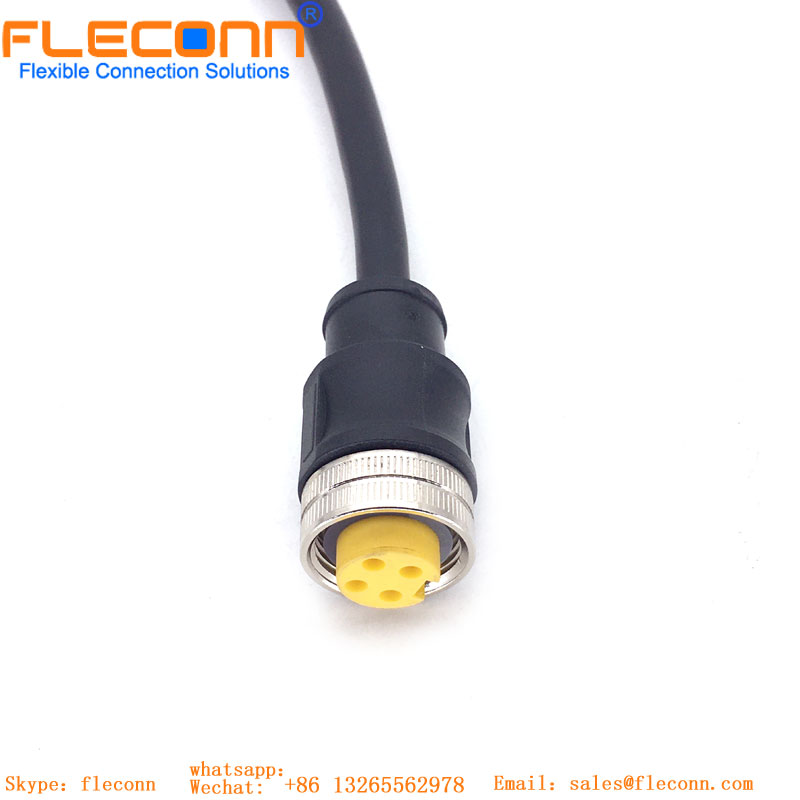

![7/8 4 Pin Female Straight Connector Cable 7/8 4 Pin Female Straight Connector Cable](/u_file/2404/products/01/5fabafd4eb.jpg)
![7/8 4 Pin Overmolded Connector Cable 7/8 4 Pin Overmolded Connector Cable](/u_file/2404/products/01/ef592890d0.jpg)
![7/8 Connector Cable](https://cn.connector-wire-harness.com/u_file/2403/photo/0a93cd02f9.jpg)
