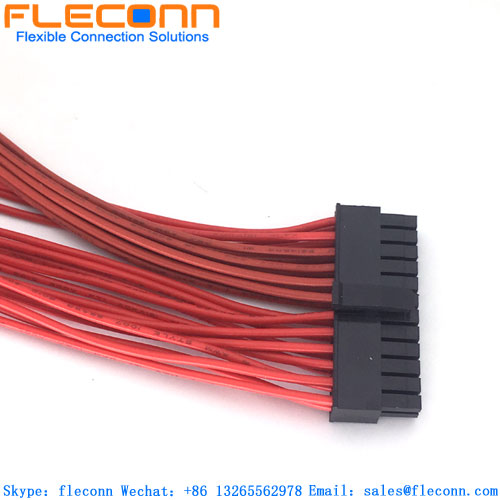

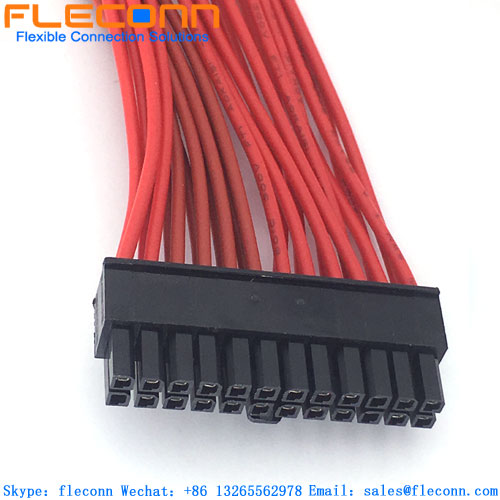

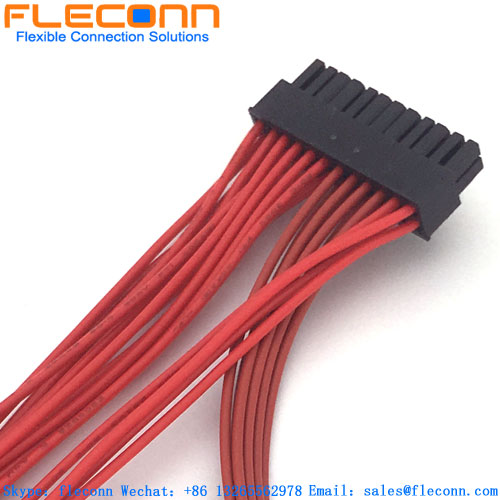

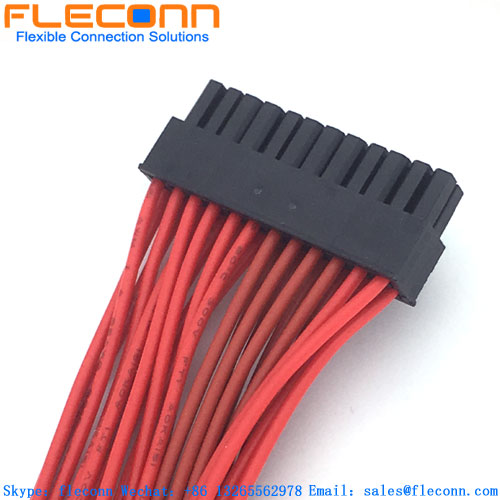

Micro MATE-N-LOK TE Connector Wire Harness 24 Pin
We can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance.
Micro MATE-N-LOK TE Connector Wire Harness 24 Pin Features
Product Name: TE Connector Wire Harness |
Gender:Female |
Connector Mounting Type : Cable Mount |
Voltage Maximum:150V |
Cable Length and Color:Customized |
Wire/Cable Type:UL 1601 |
Assembly Configuration:Dual Ended Connectors |
Material Resin:Nylon |
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG |
Certificate: RoHS CE |
Operating temperature, fixed installation: -40 – 105 °C deg. |
Pitch Mating Interface:3.0mm |
Insulation resistance: ≥100mΩ |
Material Metal:Brass |
Micro MATE-N-LOK TE Connector Wire Harness 24 Pin Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |
Micro MATE-N-LOK TE Connector Wire Harness 24 Pin
